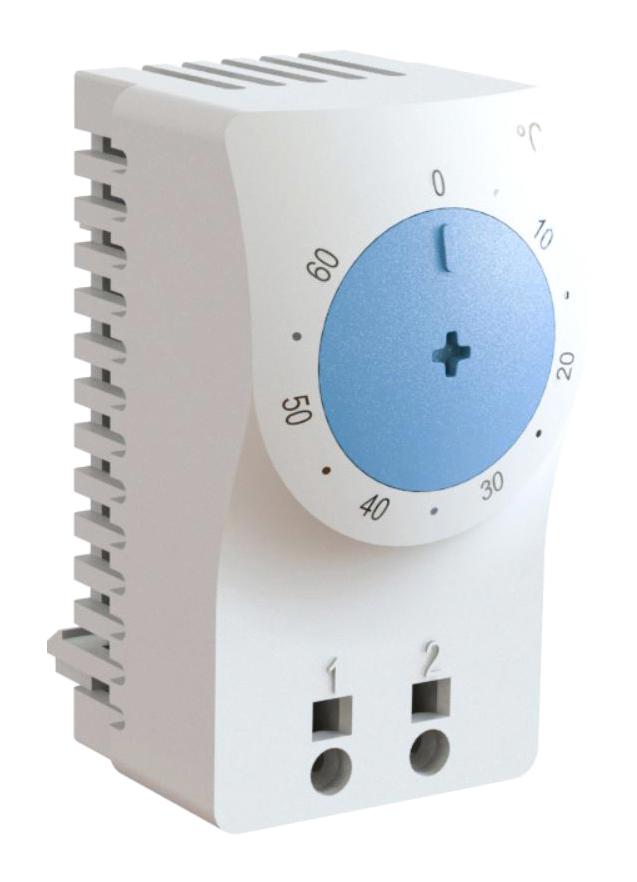

STEGO 11101901 Compact Thermostat Regulator
STEGO KTO 111 and KTS 111 mechanical thermostats provide reliable temperature regulation for a variety of industrial applications, including heaters, filter fans, and signal devices. These compact thermostats feature Push-In terminals for tool-free wiring and are designed for use in challenging environments, with suitability for altitudes up to 5,000 meters. The robust design ensures safe wiring and easy adjustability, making them ideal for applications requiring precise temperature control and reliable performance. They are suitable for use in heaters, filter fans, cooling equipment, and signal devices.
STEGO 11101901 Compact Thermostat Regulator Specifications:
- Switch temperature difference: 7 K (±4 K tolerance)
- Sensor element: thermostatic bimetal
- Contact type: snap-action contact
- Service life: 100,000 cycles verified
- Max. operating voltage, frequency range: AC 250 V, 50-60 Hz
- Max. inrush current: AC 16 A for 10 sec.
- Connection: 2 Push-In clamps
- rigid wire: 2.5 mm² (AWG 14)
- stranded wire: 1.5 mm² (AWG 16)
- Mounting: clip for 35 mm DIN rail, EN 60715
- Casing: plastic according to UL94 V-0, light grey
- Dimensions: 60 x 33 x 41 mm
- Weight: approx. 40 g
- Fitting position: variable
- Operating/Storage temperature: -45 to +80 °C (-49 to +176 °F)
- Operating/Storage humidity: max. 90 % RH (non-condensing)
- Protection type/Protection class: IP20 / II
- Overvoltage category/Altitude: II: up to 5,000 m; III: up to 2,000 m
- Setting range: 0 to +60 °C
- Switching current: AC 250 V: 10 (2) A
- AC 120 V: 15 (2) A
- DC 24-72 V: 30 W
- Approvals: VDE, UL File No. E164102, EAC
Buy the 11101.9-01 STEGO Compact Thermostat Regulator | myMectronic
Purchase the STEGO 11101.9-01 Compact Thermostat Regulator securely and efficiently for your industrial needs.
