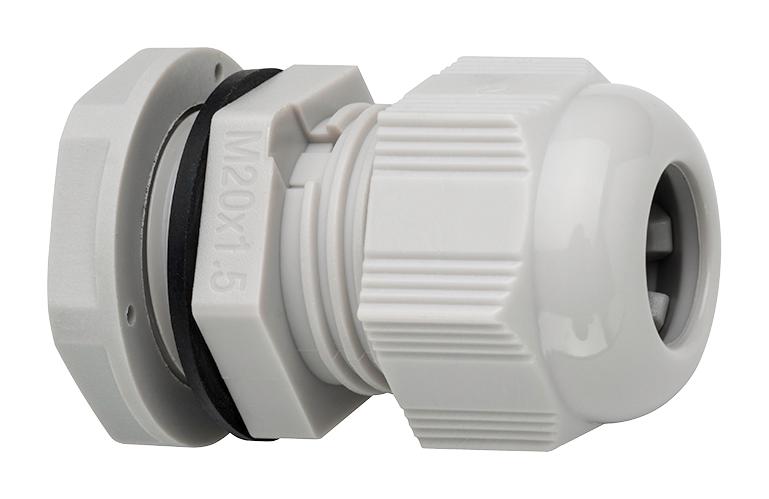

STEGO 28411000 ventilation cable gland
The ventilation cable gland DAK 284 is designed to enable secure cable entry into enclosures while providing pressure compensation, maintaining IP66/IP67 protection. Made of light grey plastic, it features a waterproof PTFE filter that allows humidity to escape without letting water or dirt enter, effectively preventing condensation and dust ingress caused by internal and external temperature fluctuations. Its variable fitting position and compatible mounting threads make it versatile for different enclosure configurations, ensuring reliable pressure equalization and environmental protection in various industrial applications.
STEGO 28411000 ventilation cable gland Specifications:
- Mounting threads: MI2x15, MI6x15, M20x15
- Enclosure wall thickness: 0.02-0.12 inches (0.5-3 mm)
- Material: plastic, light grey
- Protection type: IP66 / IP67 (EN 60529)
- Sealing gasket: NBR
- Filter: PTFE
- Operating/Storage temperature: -4°F to +176°F (-20°C to +80°C)
- External thread diameter and cable damping range: MI2x15 (8mm, 4-8mm cable), MIG x15 (10mm, 4-8mm cable), M20x15 (10mm, 6-12mm cable)
- Thread: external with variable fitting position
- Lock nut torque: 2Nm
- Approvals: UL File No. E471430, VDE, EAC
Buy the Buy Industrial Ventilation Cable Gland Part Number 28411000 Online
Enhance your enclosure protection with our high-quality ventilation cable gland, part number 28411000. Designed for pressure compensation and waterproof sealing, it maintains IP66/IP67 protection standards. Made of durable plastic with a PTFE filter, it allows humidity to escape without allowing water or dirt inside. Easy to install with compatible threads and variable fitting positions, this gland is ideal for industrial environments requiring reliable environmental sealing, condensation prevention, and pressure equalization in enclosures. Secure your projects today!
Order your industrial ventilation cable gland part number 28411000 today and ensure reliable pressure equalization and waterproof cable entry for your enclosures.
Frequently Asked Questions
Where can I buy STEGO 28411000?
You can click on the BUY or RFQ button to purchase 28411000 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 28411000?
You can download the 28411000 datasheet or visit the STEGO website for support.
Who is the manufacturer of 28411000?
STEGO
