STELLAR LABS CM-2250 Datasheet & Stock

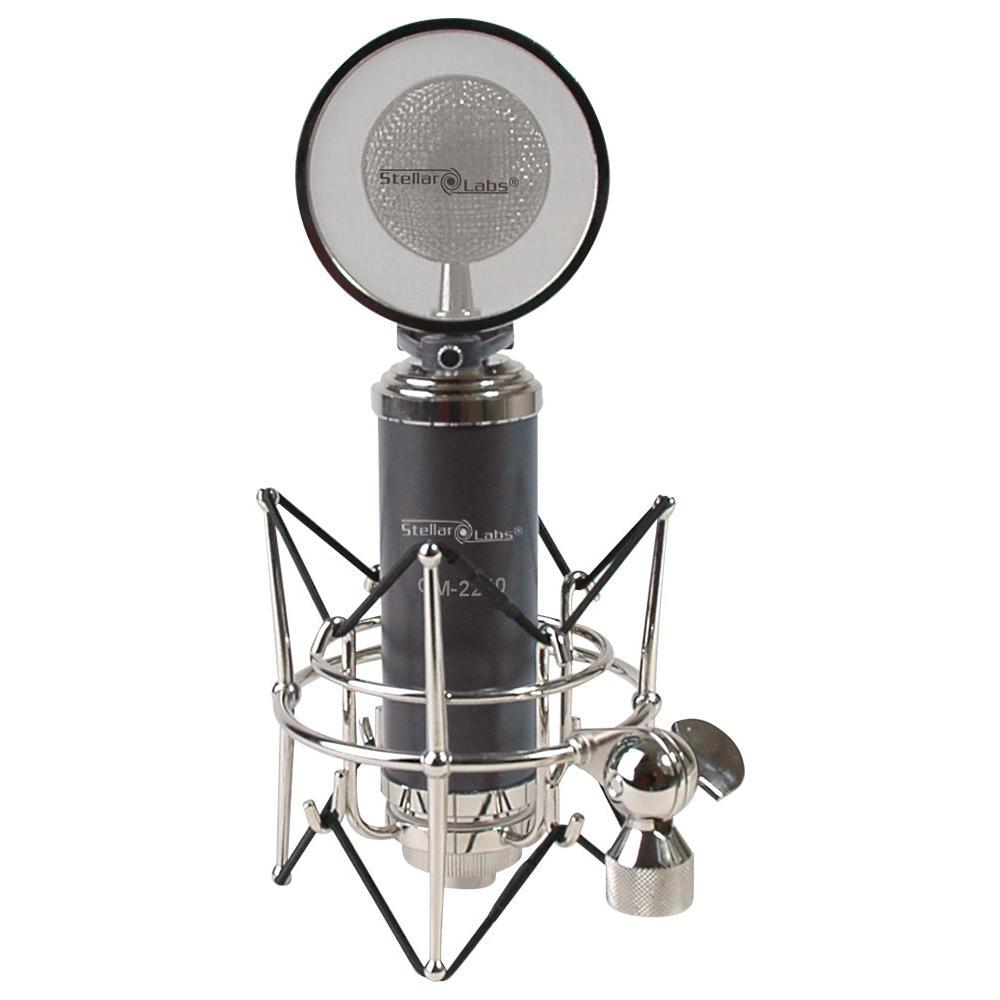

Studio Condenser Microphone The CM-2250 is a beautifully constructed condenser microphone designed for general purpose and recording. It utilizes an extremely precise electronic circuit control and pure aluminum-plated diaphragm capsule. It also features a cardioid polar pickup pattern with high output sensitivity, low noise and a wide dynamic range. The CM-2250 is an ideal uses are: Personal recording on a computer, podcasting, and many other detail oriented uses. NOTE: This microphone is set from the factory for 48V phantom power use, optional XLR cable available here. It may also be 5V powered, typical of connections to most laptops and portable devices. To change the voltage setting, unscrew the bottom plate of the microphone, pull the body of the microphone down, revealing the voltage selection switch. A specially made XLR to 3.5mm cable is included with the mic for this application.




Patented pure aluminum-plated diaphragm capsule.

Unique capsule and structure design with built-in switch, can be powered by (5V) and phantom power (48v).

Fashion appearance design.

Excellent circuit design, high output sensitivity, low noise and a wide dynamic range.

Zinc alloy makes the microphone body extremely durable.

Attractive nickel-plated shock mount and integrated metal pop filter.

Element: Pure aluminum-plated small diaphragm capsule

Polar Pattern: Cardioid

Frequency Response: 20Hz-20kHz

Sensitivity: -37dB±2dB (OdB=1V





Output Impedance: 200 ohm +30% (at 1kHz)

SPL: 136dB (at 1kHz)

Power Requirement: 5V or 48V

Weight: 16 oz

Dimensions: 2"x2"x9"
