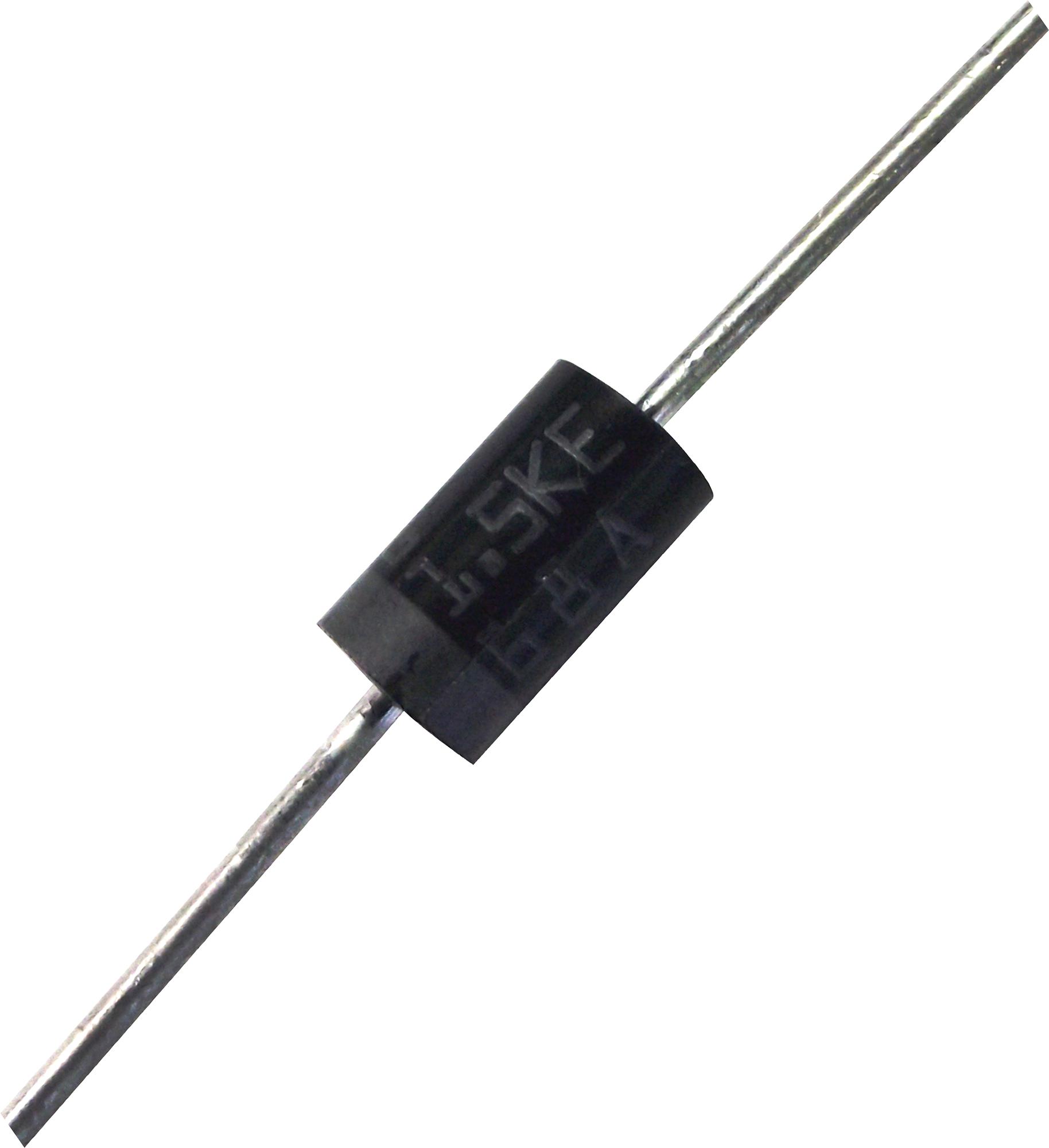

STMICROELECTRONICS 15KE18CA Transient Voltage Suppressor Diode
The 1.5KE series is a line of axial leaded transient voltage suppression diodes designed to protect sensitive electronic equipment from voltage transients caused by lightning and other surges. Featuring a peak pulse power of 1500W at 10/1000us waveform, they offer fast response times less than 1.0ps, excellent clamping capabilities, and are constructed with glass passivated chips in a DO-201 package. These diodes are compliant with RoHS, halogen free, and suitable for telecom, industrial, computer, and consumer electronic circuit protection, withstanding high temperature reflow soldering up to 260°C for 40 seconds.
STMICROELECTRONICS 15KE18CA Transient Voltage Suppressor Diode Specifications:
- Peak Pulse Power Dissipation: 1500W at 10/1000us waveform
- Stand-off Voltage: V, (varies per model, e.g., 6.8V, 10V, 12V...)
- Maximum Breakdown Voltage: Specified in datasheet for each part
- Clamping Voltage: Typically under 3.8V at 3.8V V, for unidirectional types
- Reverse Leakage Current: Less than 1pA when V, is greater than 12V
- Maximum Instantaneous Forward Voltage: 3.5/5.0 V
- Operating Temperature Range: -55°C to +175°C
- Thermal Resistance Junction to Lead: Typical 16 K/W
- Thermal Resistance Junction to Ambient: Typical 6 K/W
- Physical Package: DO-201 glass passivated chip with matte tin leads
- Dimensions: Length approximately 0.394 inches (10.0 mm), width 0.285 inches (7.25 mm), lead length 0.079 inches (2.0 mm)
- Soldering: Reflow at 260°C for 40 sec, with lead-free process guidelines
- Environmental Compliance: RoHS, Halogen free, IEC-61000-4-2 ESD 30kV
Buy the Littelfuse 15KE18CA – Reliable TVS Diode for Industrial Applications
Purchase the Littelfuse 15KE18CA transient voltage suppression diode online today and safeguard your sensitive electronics from voltage surges efficiently. These axial leaded devices deliver 1500W peak pulse power, respond in less than 1.0ps, and offer excellent clamping for lightning-induced transients. Designed with glass passivated chips and a durable DO-201 package, they meet RoHS and halogen-free standards, ensuring safe and reliable operation across various industrial, telecom, and consumer electronics applications. Secure your circuits with a trusted, high-performance TVS diode quickly and easily online.
Buy Littelfuse 15KE18CA now and experience unmatched reliability and high surge protection for electronic circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS 15KE18CA?
You can click on the BUY or RFQ button to purchase 15KE18CA from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 15KE18CA?
You can download the 15KE18CA datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of 15KE18CA?
STMICROELECTRONICS
