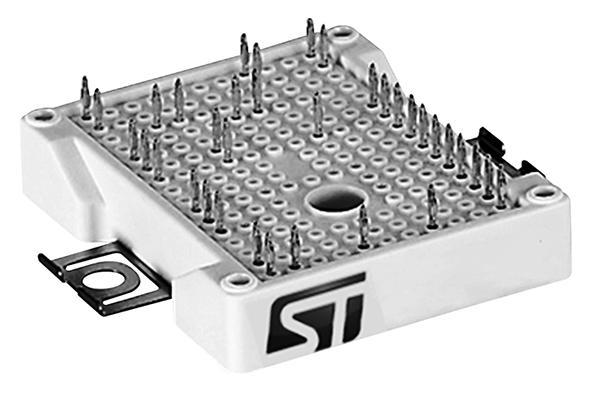

STMICROELECTRONICS A2C25S12M3 industrial inverter module
The A2C25S12M3 is a high-efficiency converter-inverter brake module featuring advanced trench gate field-stop IGBT technology, 1200 V, 25 A ratings, integrated diode, and NTC for motor drive and inverter applications. Its ACEPACK™ 2 package ensures reliable solder pin connections and low parasitic inductance, making it ideal for high-frequency switching up to 20 kHz. Designed for industrial motor control, it combines low conduction and switching losses for optimal efficiency, supported by comprehensive thermal and electrical characteristics suitable for reliable power conversion systems.
STMICROELECTRONICS A2C25S12M3 industrial inverter module Specifications:
- Collector-Emitter Voltage: 1200 V
- Continuous Collector Current: 25 A
- Pulsed Collector Current: 50 A
- Gate-Emitter Voltage: +20 V
- Total Power Dissipation: 197 W
- Maximum Junction Temperature: 175°C
- Operational Temperature Range: -40°C to 150°C
- Electrical Ratings conform to industrial standards for inverter stages
- Module Package: ACEPACK™ 2 with solder pins, low parasitic inductance
- Isolation Voltage: 2500 V (AC, 60 s)
- Stray Inductance: 33.5 nH
- Screw Mounting Torque: 40-80 Nm
- Thermal Resistance (junction to case): 0.69-0.76 °C/W
- Repetitive Peak Reverse Voltage of Diode: 1200 V
- Diode Forward Voltage: 2.95–4.1 V
- Diode Reverse Recovery Time: 190 ns
- Gate Charge: 80 nc
- Switching Times: Turn-on/Turn-off ~109 ns
- Reverse recovery energy: ~0.74–2.33 mJ depending on conditions
Buy the STMicroelectronics A2C25S12M3 – Reliable Converter Inverter Brake for Industrial Applications
Purchase the A2C25S12M3 power module online to enhance your industrial motor drives and inverter systems. This reliable converter-inverter brake features advanced trench IGBT technology, integrated diode, and NTC for optimal thermal management. Its ACEPACK™ 2 package ensures robust soldered connections, low parasitic inductance, and high switching performance up to 20 kHz. Designed for demanding applications, it combines low conduction and switching losses, ensuring high efficiency, reliability, and ease of integration, making it the ideal choice for power electronics professionals seeking durable solutions.
Get STMicroelectronics A2C25S12M3 today—built for efficiency and durability in power conversion and motor control systems.
