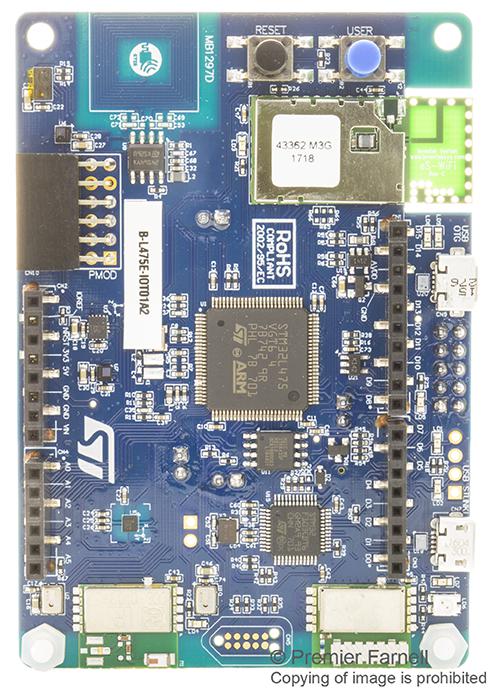

STMICROELECTRONICS BL475EIOT01A2 IoT Development Kit
The B-L475E-IOT01A Discovery kit is designed for IoT application development, enabling direct cloud connectivity and multi-sensor data collection. It features ultra-low-power STM32L4 Series MCUs based on ARM Cortex-M4 with 1MB Flash and 128KB SRAM. The kit supports multiple wireless protocols including Bluetooth V4.1, Wi-Fi, and Sub-GHz RF. It offers extensive expansion options with Arduino Uno V3 and PMOD connectors, onboard debug tools, and advanced sensors like humidity, temperature, magnetometer, accelerometer, gyroscope, barometer, and ToF. Ideal for IoT, automation, and sensor-based projects.
STMICROELECTRONICS BL475EIOT01A2 IoT Development Kit Specifications:
- MCU: STM32L4 Series, ARM Cortex-M4
- Flash Memory: 1 Mbyte
- SRAM: 128 Kbytes
- Wireless Modules: Bluetooth V4.1, Wi-Fi 802.11b/g/n, Sub-GHz 868/915 MHz
- Sensors: Humidity, temperature, magnetometer, accelerometer, gyroscope, barometer, ToF
- Connectivity: Arduino Uno V3, PMOD, USB OTG FS Micro-AB
- Power Supply: USB Vgs, external sources, onboard debug interface
- Additional: On-board ST-LINK/V2-1 programmer/debugger
- Laser safety: Class 1 laser, compliant with IEC 60825-1:2014
- Supported OS: Windows, Linux, MacOS
- Development Tools: Keil MDK-ARM, IAR EWARM, GCC IDEs, ARM mbed
- Preloaded demo software for peripheral testing
Buy the STMicroelectronics B-L475E-IOT01A2 – Reliable IoT Development Kit for Industrial Applications
Enhance your IoT development with the STMicroelectronics B-L475E-IOT01A2 Discovery kit, featuring low-power STM32L4 MCU, multi-protocol wireless modules, and a wide array of sensors. Supports popular IDEs like Keil, IAR, GCC, and ARM mbed for flexible programming. The on-board ST-LINK/V2-1 debugger simplifies development, while the Arduino V3 and PMOD connectors allow easy expansion for specialized add-ons. Perfect for industrial IoT, automation, and sensor-based applications, it provides a reliable platform for innovative solutions and rapid prototyping.
Order your STMicroelectronics B-L475E-IOT01A2 Discovery kit today and accelerate your IoT projects with seamless cloud connectivity and extensive sensor integration.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BL475EIOT01A2?
You can click on the BUY or RFQ button to purchase BL475EIOT01A2 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BL475EIOT01A2?
You can download the BL475EIOT01A2 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BL475EIOT01A2?
STMICROELECTRONICS
