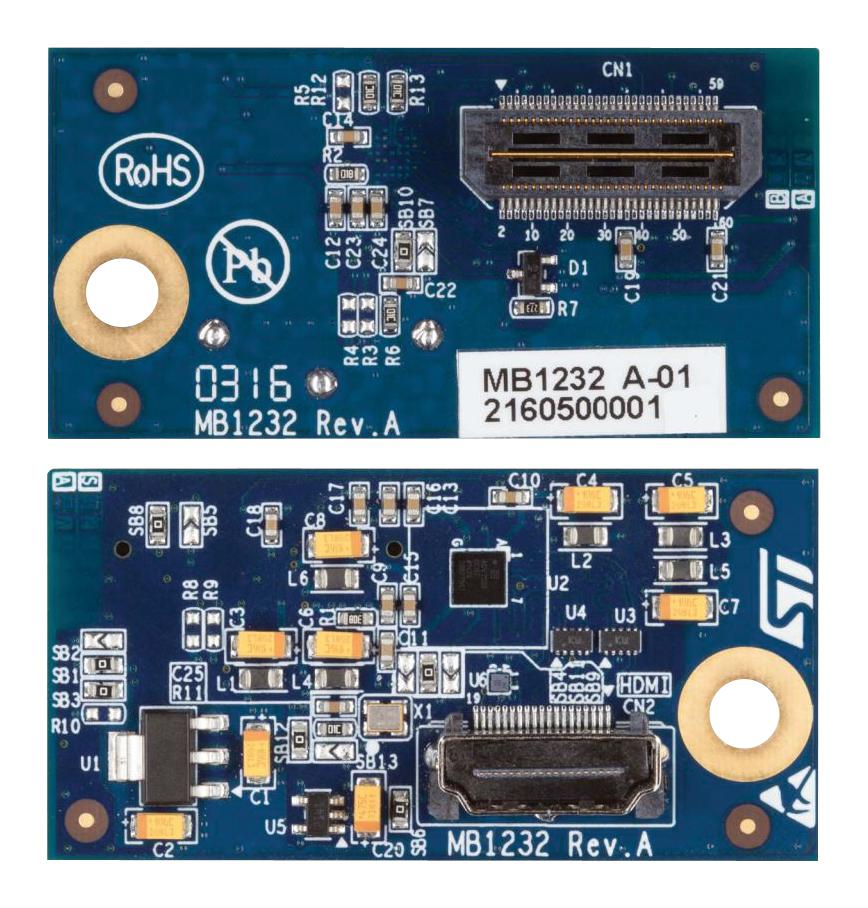

STMICROELECTRONICS BLCDADHDMI1 Video Interface Module
The DSI to HDMI adapter board provides a seamless interface for STM32 microcontrollers, supporting up to four lanes of MIPI/DSI data at 800 Mbps each. Equipped with the ADV7533 bridge chip, it enables video input, stereo audio, and HDMI output compatible with resolutions up to 80 MHz pixel clock. Features include S/PDIF audio transmission, CEC signals, 5 V-tolerant I/Os, and ESD protection, making it ideal for STM32 evaluation and discovery boards for video demonstration projects and multimedia applications.
STMICROELECTRONICS BLCDADHDMI1 Video Interface Module Specifications:
- Supports up to four lanes of MIPI/DSI data at 800 Mbps each
- HDMI output support for resolutions up to 80 MHz pixel clock
- Includes stereo S/PDIF and 2-channel I2S audio inputs
- Features CEC signals, 5 V-tolerant I/Os, and common-mode filters with ESD protection
- Compatible with STM32 evaluation and discovery boards
- Bridge chip ADV7533 enables support for 2-, 3-, or 4-lane DSI video input
- Supports video mode only in non-burst mode with synchronization pulse
- Designed for multimedia and video demonstration projects
Buy the STMicroelectronics Series Video Adapter BLCDADHDMI1
Enhance your multimedia development projects with the STMicroelectronics DSI to HDMI adapter board. Supporting up to four lanes of high-speed DSI input, stereo audio, and HDMI v1.3 output, it is ideal for STM32 evaluation and discovery boards. With features like 80 MHz pixel clock support, CEC signals, and ESD protection, this module simplifies integration and accelerates device testing. Whether for embedded systems or display solutions, order online today and upgrade your video capabilities with proven, reliable hardware.
Order your STMicroelectronics Series BLCDADHDMI1 today and enhance your embedded display solutions with this versatile DSI to HDMI adapter.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BLCDADHDMI1?
You can click on the BUY or RFQ button to purchase BLCDADHDMI1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BLCDADHDMI1?
You can download the BLCDADHDMI1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BLCDADHDMI1?
STMICROELECTRONICS
