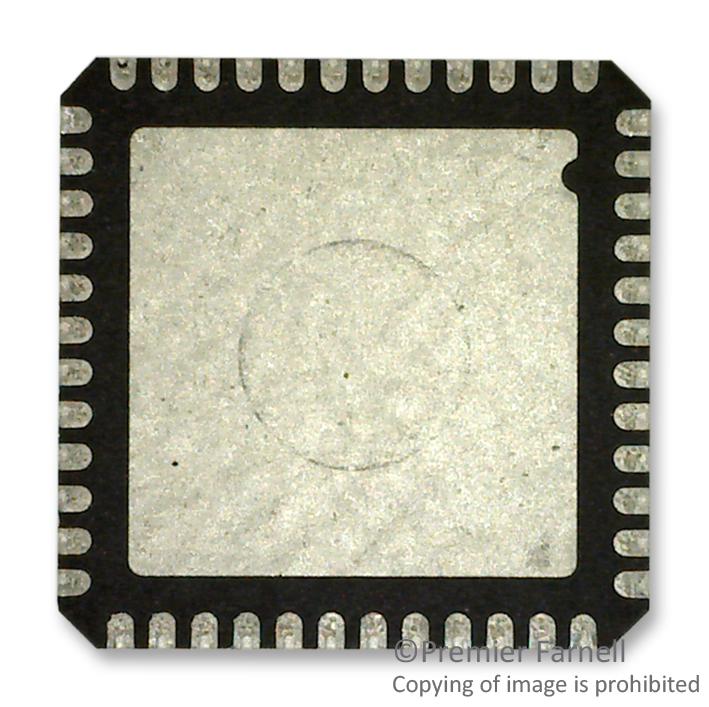

STMICROELECTRONICS BLUENRG345MT Wireless SoC
The BlueNRG-LP is an ultra-low power Bluetooth Low Energy system-on-chip supporting Bluetooth 5.2 with features like long-range Coded PHY, advertising extensions, and hardware security. It integrates a Cortex-M0+ microcontroller operating up to 64 MHz, 256 KB flash memory, 64 KB RAM, and a 12-bit ADC. The chip features multiple interfaces including SPI, I2C, USART, and advanced power management with a step-down regulator, making it suitable for IoT, healthcare, and smart automation applications requiring reliable wireless connectivity and low power consumption.
STMICROELECTRONICS BLUENRG345MT Wireless SoC Specifications:
- Bluetooth 5.2 support with 2 Mbps data rate and long-range Coded PHY
- ARM Cortex-M0+ microcontroller, up to 64 MHz
- Flash memory: 256 KB, RAM: 64 KB
- 12-bit ADC with 8 channels, digital microphone interface
- Integrated RF transceiver at 2.4 GHz supporting multiple roles
- Power supply voltage: 1.7 V to 3.6 V, low power modes including DEEPSTOP and SHUTDOWN
- On-chip 256 KB flash, 7 KB ROM, 1 KB OTP memory
- Supports external 32 MHz crystal and 32.768 kHz low-speed crystal
- Multiple communication interfaces: SPI, I2C, USART, LPUART, I2S
- Embedded security: True RNG, hardware AES, PKA, flash protection
- Temperature range: -40°C to +105°C, ECOPACK2 compliant package options
Buy the STMicroelectronics Series BlueNRG-LP Wireless SoC: BLUENRG345MT
Discover the BlueNRG-LP ultra-low power wireless system-on-chip enabling reliable Bluetooth 5.2 connectivity with high security and versatile interfaces. Whether for IoT, healthcare, or industrial applications, this module offers outstanding performance with integrated security features, flexible power management, and extended operating temperature range. Designed for low power consumption, it supports multiple roles and long-range Bluetooth communication, making it ideal for battery-powered, smart, and connected solutions. Purchase online today to accelerate your product development with this reliable, feature-rich wireless SoC.
Order your STMicroelectronics BlueNRG-LP Wireless SoC today and give your IoT projects the dependable long-range Bluetooth 5.2 connectivity they deserve.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BLUENRG345MT?
You can click on the BUY or RFQ button to purchase BLUENRG345MT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BLUENRG345MT?
You can download the BLUENRG345MT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BLUENRG345MT?
STMICROELECTRONICS
