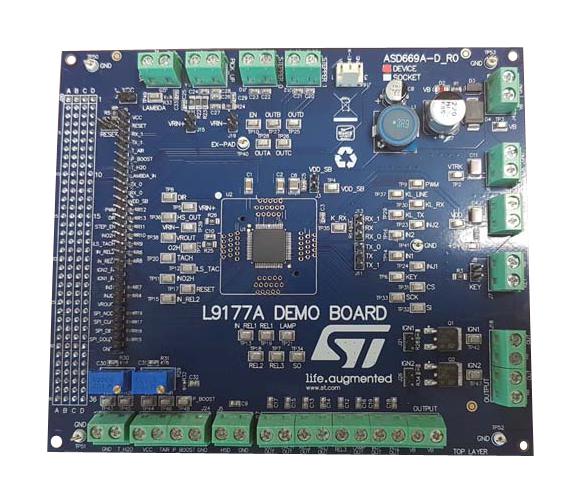

STMICROELECTRONICS EVALL9177A Automotive Powertrain Evaluation Board
The EVAL-L9177A Evaluation Board is designed for testing STMicroelectronics' L9177A smart power device, suitable for automotive powertrain applications. It supports multiple loads such as injectors, relays, stepper motors, and tachometers while interfacing with sensors like variable reluctance and Hall sensors. The board features protection against short circuits and over-temperature, facilitating diagnostics and network interactions through SPI and K-line protocols. Compatible with the SPC564M-DISP, it allows easy integration with microcontrollers, making it ideal for advanced embedded automotive control systems.
STMICROELECTRONICS EVALL9177A Automotive Powertrain Evaluation Board Specifications:
- Voltage min/max: 3.9 V to 30 V
- Power Supply: 4 V + 24 V; up to 10A
- Package: TQFP-64
- Communication protocols: SPI, K-line
- Channels: 2 injector drivers, 1 Lambda sensor heater, 3 relay drivers, 1 LED/lamp driver, tachometer driver, stepper motor driver, protected high side driver
- Input Signal Connector: Compatible with SPC564M-DISP
- Protection: Short circuit and over-temperature protection
- Operating temperature: Not specified, but protected against typical automotive conditions
- Sensor interface: Variable Reluctance and Hall sensors
- Diagnostic: Fully accessible registers and diagnostics via SPI
Buy the Buy STMicroelectronics EVAL-L9177A Evaluation Board Part Number EVALL9177A Online
Purchase the STMicroelectronics EVAL-L9177A Evaluation Board online today and take advantage of its comprehensive features for automotive powertrain testing. Designed for evaluating the L9177A smart power device, this board supports dual injector drivers, relay drivers, stepper motors, and sensor interfaces, ensuring thorough diagnostics and protections. Compatible with standard microcontrollers and development tools, it simplifies integration into your projects. Improve your automotive control systems with this reliable, easy-to-use evaluation platform. Order now to accelerate your development process.
Order your STMicroelectronics EVAL-L9177A Evaluation Board today and enhance your automotive powertrain development with reliable, feature-rich diagnostic capabilities.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALL9177A?
You can click on the BUY or RFQ button to purchase EVALL9177A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALL9177A?
You can download the EVALL9177A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALL9177A?
STMICROELECTRONICS
