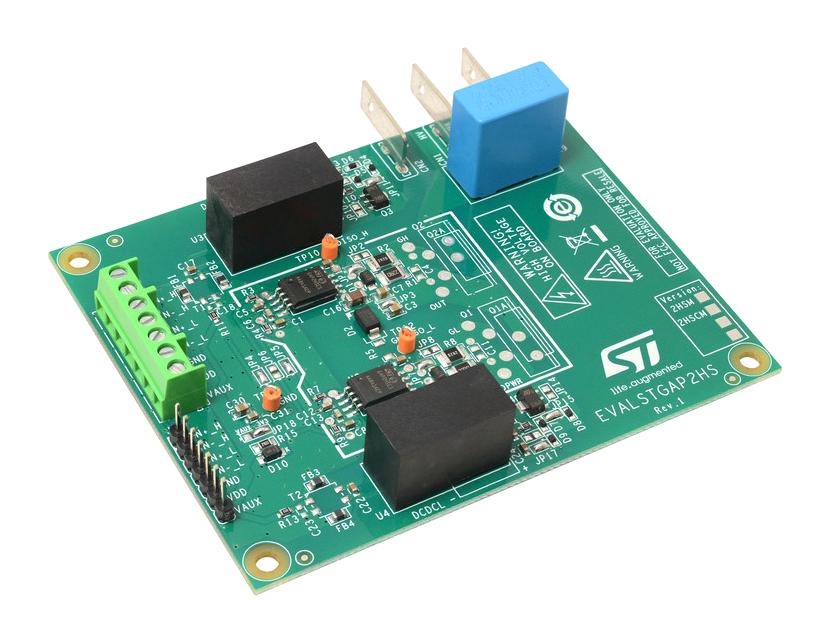

STMICROELECTRONICS EVALSTGAP2HSM High-Voltage Gate Driver Board
The EVALSTGAP2HSM evaluation board is designed for high-power inverter applications, supporting voltage up to 1200 V. It features isolated gate drivers with 4 A current capability, separate source and sink outputs for tailored gate control, onboard isolated DC-DC converters, and protection functionalities like UVLO and thermal shutdown. Suitable for MOSFET or IGBT power switches, it facilitates evaluation of all device features, enabling easy tuning of external components for optimized performance in motor drives and industrial power systems.
STMICROELECTRONICS EVALSTGAP2HSM High-Voltage Gate Driver Board Specifications:
- High voltage rail up to 1200 V
- Gate driver current: 4 A source/sink @ 25°C
- Separate sink and source outputs
- Galvanic isolation: 6000 V
- Short propagation delay: 75ns
- Gate driving voltage: up to 26 V
- Onboard isolated DC-DC converters for high-side and low-side supply
- Negative gate driving capability
- UVLO and thermal shutdown protection
- Logic supply: 3.3 V or 5 V externally
- Maximum isolation voltage: 5.2 kV
- Selectable driving voltages: +15/0 V; +15/-3 V; +19/0 V; +19/-3 V
- Works with MOSFETs or IGBTs in TO-220 or TO-247 packages
- Designed for inverter motor drives and industrial power systems
Buy the STMicroelectronics Series Evaluation Board: EVALSTGAP2HSM
Get the STMicroelectronics EVALSTGAP2HSM evaluation board online today and begin testing advanced isolated gate drivers. This versatile, high-voltage capable platform supports up to 1200 V, providing 4 A current capacity, onboard DC-DC power supplies, and protection features like UVLO and thermal shutdown. Ideal for motor inverter drives and industrial power systems, it offers easy component tuning and configuration, enabling quick evaluation and integration of high-power switching solutions for your applications.
Order your STMicroelectronics Series EVALSTGAP2HSM evaluation board today and experience reliable high-voltage gate driver performance for industrial applications.
