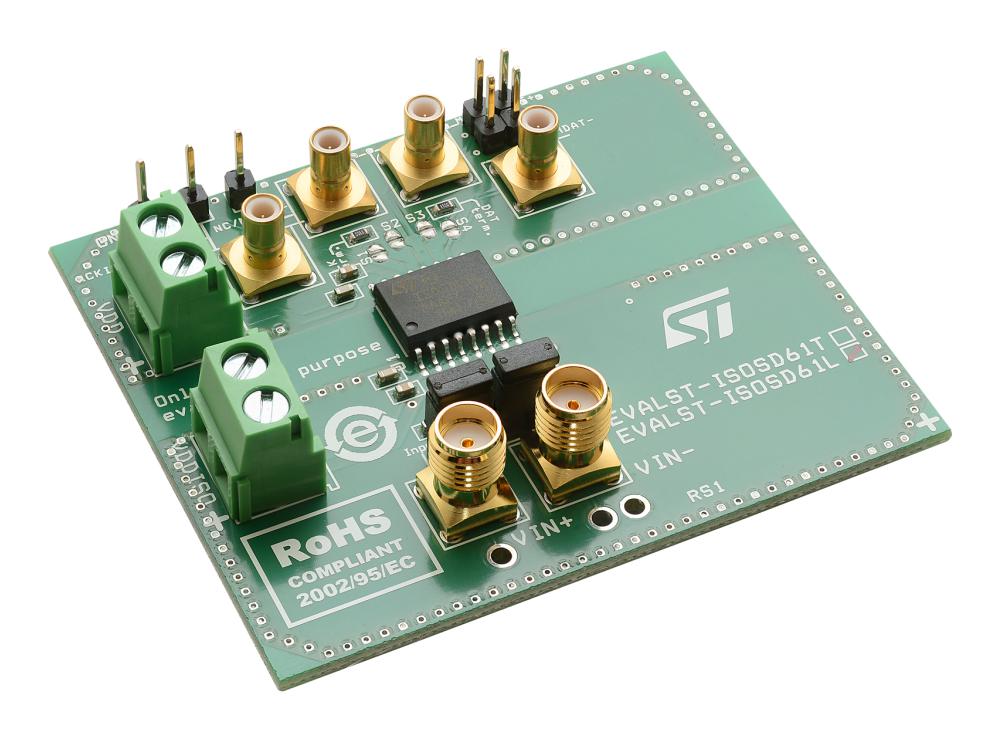

STMICROELECTRONICS EVALSTISOSD61L isolated ADC evaluation board
The evaluation board for the ISOSD61L is designed for comprehensive testing of this isolated sigma-delta ADC. It features low-voltage differential signaling, 6 kV galvanic isolation, high common-mode transient immunity of 30kV/us, 16-bit resolution with no missing codes, and a full-scale differential input signal range of ±320 mV. Capable of external clock inputs up to 25 MHz, it offers high SNR of 86 dB, bandwidth of 49 kHz, and an industrial temperature range of -40°C to +125°C. The board includes coaxial and header pins, LVDS I/O with on-board termination, and pads for shunt current sensors, enabling versatile evaluation and integration.
STMICROELECTRONICS EVALSTISOSD61L isolated ADC evaluation board Specifications:
- Isolation Voltage: 6 kV (galvanic isolation barrier)
- Resolution: 16-bit, no missing codes
- Full Scale Differential Input: ±320 mV
- Input Interface: Differential signals, LVDS digital I/O
- Clock Frequency: Up to 25 MHz external clock input
- Common-Mode Transient Immunity: 30kV/us
- Bandwidth: 49 kHz
- Signal-to-Noise Ratio: 86 dB
- Temperature Range: -40°C to +125°C
- Input Connectivity: Coaxial and header pins, additional pads for shunt current sensor
- Isolation Barrier: 6000 V peak
- Features: On-board termination resistors, optional connection to shunt current sensors
Buy the STMicroelectronics EVALST-ISOSD61L – Reliable Isolated Sigma-Delta Converter for Industrial Applications
Enhance your industrial testing and measurement capabilities with the STMicroelectronics EVALST-ISOSD61L evaluation board. Designed for comprehensive evaluation of the ISOSD61L isolated sigma-delta converter, it offers high resolution, galvanic isolation of up to 6000 V, and excellent immunity to noise and transients. This versatile board features LVDS digital I/O, configurable input options, and extensive temperature operation, making it ideal for precision measurement in demanding industrial environments. Purchase online now for reliable testing solutions that ensure performance and safety.
Order your STMicroelectronics EVALST-ISOSD61L evaluation board today and experience precise, isolated analog-to-digital conversion for your industrial projects.
