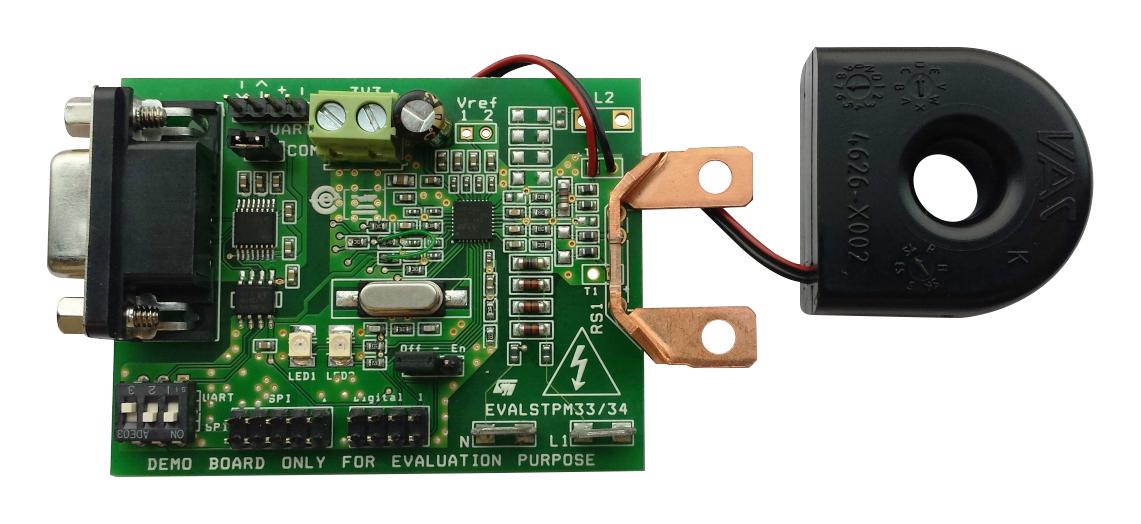

STMICROELECTRONICS EVALSTPM33 Energy Metering Evaluation Board
The STPM33 energy metering evaluation board is a high-precision single-phase meter with 0.2% accuracy, featuring tamper detection through neutral current monitoring. Suitable for power line systems with voltage ranging from 140 to 300 Vrms and current ratings of 5/100 A, it includes CT and shunt sensors, USB and UART interfaces for configuration and data reading, and digital expandability to microcontrollers. Compliant with IEC 61000 standards, the board supports simultaneous measurement of active and reactive power, making it ideal for energy management, smart metering, and power monitoring applications in industrial and commercial sectors.
STMICROELECTRONICS EVALSTPM33 Energy Metering Evaluation Board Specifications:
- Accuracy: 0.2%
- Voltage Range: 140 to 300 Vrms
- Current Ratings: Inom / Imax = 5/100 A
- Frequency: 50/60 Hz + 10%
- Tamper Detection: Through neutral current monitoring
- Interfaces: USB, RS232, UART, SPI
- Power Supply: 3.3 V external or via USB interface
- Standard Compliance: IEC 61000
- Operating Temperature: -40 to +85 °C
- Power Measurement: Active and reactive power output via programmable LEDs
- Additional Features: Digital expansion, microcontroller compatibility
Buy the Buy STMicroelectronics EVALSTPM33 Part Number EVALSTPM33 Online
Purchase the STMicroelectronics energy metering evaluation board online today. Designed for high accuracy and tamper detection, it supports power measurement, offers multiple communication interfaces including USB, UART, and SPI, and complies with IEC 61000 standards. Perfect for smart metering, energy management, and industrial applications, this board enables efficient current, voltage, active, and reactive power monitoring while providing digital expandability for microcontroller integration. Build reliable, precise energy solutions with this versatile and durable measurement system.
Get STMicroelectronics EVALSTPM33 today—built for precision, tamper detection, and long-lasting durability in energy monitoring systems.
