STMICROELECTRONICS EVLSRK1001PF Synchronous Rectification Controller

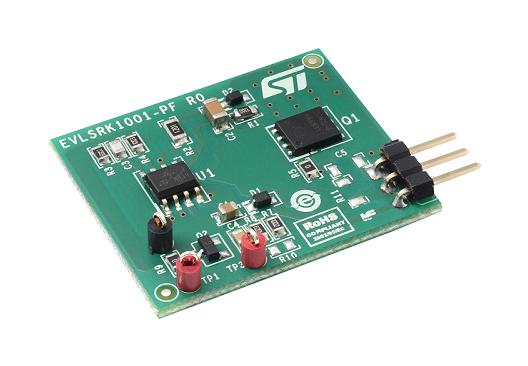

The EVLSRK1001-PF is a demonstration board designed to evaluate the SRK1001 synchronous rectification controller, ideal for secondary-side synchronous rectification in flyback converters. It features high-current gate-drive outputs for N-channel MOSFETs, operates in quasi-resonant and fixed frequency modes, and includes a Power MOSFET in a PowerFLAT 5x6 package. The board supports applications from 3.5 V to 32 V, with adjustable blanking times, making it suitable for various power supply designs and enabling efficient, reliable rectification in switch-mode power supplies.
STMICROELECTRONICS EVLSRK1001PF Synchronous Rectification Controller Specifications:
- Supports voltage range: 3.5 V to 32 V
- Max switching frequency: 500 kHz
- Internal gate drive for N-channel MOSFET
- SR MOSFET type: BSC110N15NS5, 150 V, 11 mΩ, PowerFLAT 5x6 package
- Provides high-current gate-drive outputs
- Supports both quasi-resonant and fixed frequency operation
- Blanking time after turn-on: approximately 1.44 μs
- Blanking time after turn-off: 3 μs
- Includes a 120 kΩ resistor on TON pin and a 100 kΩ resistor on TOFF pin
- Removable resistor R9 for DIS/SYNC control functionality
- Compatible with power supply designs requiring efficient secondary-side rectification
- Board dimensions and layout support easy integration into existing power modules
Buy the Buy STMicroelectronics EVLSRK1001PF Part Number EVLSRK1001PF Online
Order the STMicroelectronics EVLSRK1001-PF demonstration board online to simplify evaluation of high-performance synchronous rectification in flyback converters. The board features a high-current gate drive for N-channel MOSFETs, supporting applications from 3.5 V to 32 V, with adjustable blanking times for optimal performance. It enables easy integration into power supplies, improving efficiency and reducing losses. Perfect for engineers designing switch-mode power supplies seeking a reliable, versatile solution for secondary-side rectification, offering seamless setup and consistent operation.
Buy STMicroelectronics EVLSRK1001PF now and enhance your flyback converter with adaptive synchronous rectification for reliable high-current operation.
