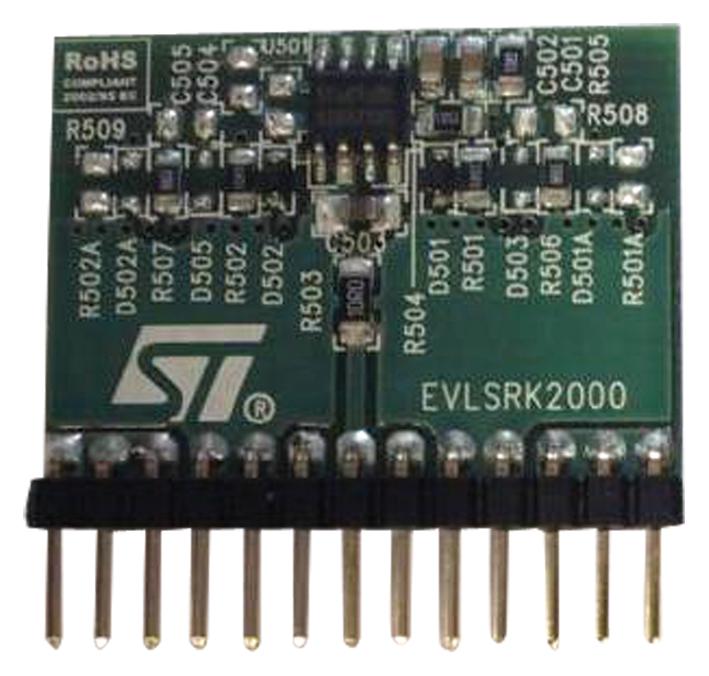

STMICROELECTRONICS EVLSRK2000L60 LLC Resonant Converter Module
The EVLSRK2000L60 is an advanced demonstration board designed for the evaluation of the SRK2000 control IC in LLC resonant converters with synchronous rectification (SR). It features optimized drain sensing and driving logic, supporting various MOSFET configurations for efficient power switch control. The board incorporates safety features such as blanking time to prevent premature turn-off, and an automatic sleep mode for light load conditions to enhance overall efficiency. With flexible connections for secondary winding implementation and precise gate driver control, it is ideal for high-efficiency power supply applications.
STMICROELECTRONICS EVLSRK2000L60 LLC Resonant Converter Module Specifications:
- Supports various MOSFET configurations: STL140N4LLF5, STL85N6F3, STD95N4F3, STS15N4LLF3
- Operates with supply voltage: 12 V, with flexible secondary winding connections
- Drain-source voltage sensing with optimized parasitic inductance considerations
- Blanking time set at 50% of each half-cycle for stable operation
- Includes features for turn-off/turn-on delay compensation and sub-harmonic oscillation control
- Automatic sleep mode activates at light loads, reducing power consumption
- Gate driver outputs capable of driving multiple power MOSFETs in parallel
- Includes internal freewheeling and biasing components for safe operation
- Supported with detailed layout and schematic for easy implementation
- Designed for high-efficiency power supply development with improved thermal management
Buy the Buy STMicroelectronics SRK2000L60 Part Number EVLSRK2000L60 Online
Purchase the STMicroelectronics SRK2000L60 demonstration board now to enhance your power supply designs. Optimized for LLC resonant converters with synchronous rectification, this module supports various MOSFET configurations, ensuring high efficiency and reliable operation. Its advanced sensing, delay compensation, and sleep mode features help maximize performance while reducing power losses and thermal dissipation. Perfect for engineers and designers seeking precise control in high-performance applications, the SRK2000L60 enables quick integration and testing for innovative power solutions.
Get STMicroelectronics SRK2000L60 today—built for precision, high efficiency in LLC resonant converters, supporting multiple MOSFET configurations with sleep mode.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVLSRK2000L60?
You can click on the BUY or RFQ button to purchase EVLSRK2000L60 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVLSRK2000L60?
You can download the EVLSRK2000L60 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVLSRK2000L60?
STMICROELECTRONICS
