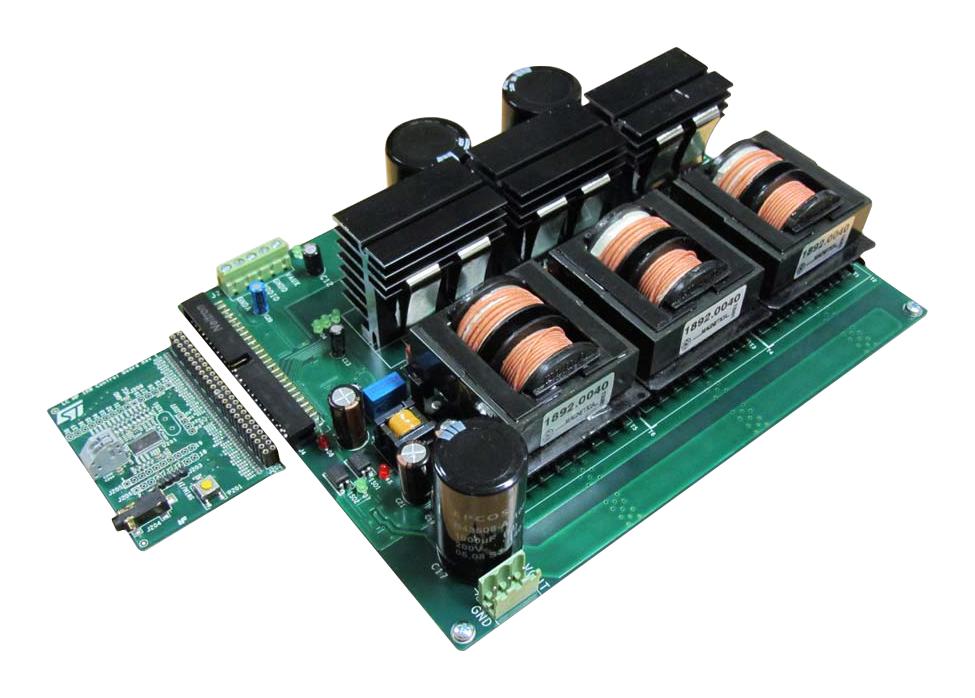

STMICROELECTRONICS EVLSTNRG1KW Power Conversion Module
The EVLSTNRG-1KW evaluation board is designed for assessing the STNRG388A digital controller in offline power conversion applications like EV battery chargers, UPS, and industrial power supplies. It features a multiphase interleaved DC/DC architecture supporting over 1000 W, with high efficiency exceeding 94%, peak efficiency of 96.5%, and an input voltage range of 350 to 420 V DC. The board offers 3-phase interleaving, phase realignment, and digital monitoring capabilities for reliable, scalable power management in demanding industrial environments.
STMICROELECTRONICS EVLSTNRG1KW Power Conversion Module Specifications:
- Power Capacity: Over 1000 W, scalable up to 3 kW
- Input Voltage Range: 350 to 420 V DC
- Full Load Power: 1000 W
- Efficiency: >94% from 10% to full load
- Peak Efficiency: 96.5% at full load
- Stand-by Power Consumption: 425 mW
- Output Voltage: 133 V
- Output Current: 7.5 A
- Maximum Output Current per Phase: 2.5 A
- Architecture: 3-phase interleaved DC/DC
- Topology: Half bridge SAB ('Single Active Bridge')
- Digital Controller: STNRG388A with monitoring and debugging via HyperTerminal
- Features: Modular power/control boards, phase realignment, and flexible power delivery
- Application: EV chargers, UPS, industrial power supplies
Buy the STMicroelectronics EVLSTNRG-1KW – Reliable High-Performance Power Conversion for Industrial Applications
Purchase the STMicroelectronics EVLSTNRG-1KW online now to experience a high-efficiency, scalable power conversion solution engineered for industrial applications. This versatile evaluation board offers a robust multiphase interleaved architecture supporting over 1000 W of power, ideal for EV chargers, UPS, and industrial power supplies. Featuring advanced digital control with the STNRG388A, it enables precise regulation, high efficiency, and easy monitoring. Optimize your power applications today with this reliable, scalable, and easy-to-integrate power module designed for demanding industrial environments.
Get STMicroelectronics EVLSTNRG-1KW today—built for precision, scalability, and long-lasting durability in demanding power management systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVLSTNRG1KW?
You can click on the BUY or RFQ button to purchase EVLSTNRG1KW from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVLSTNRG1KW?
You can download the EVLSTNRG1KW datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVLSTNRG1KW?
STMICROELECTRONICS
