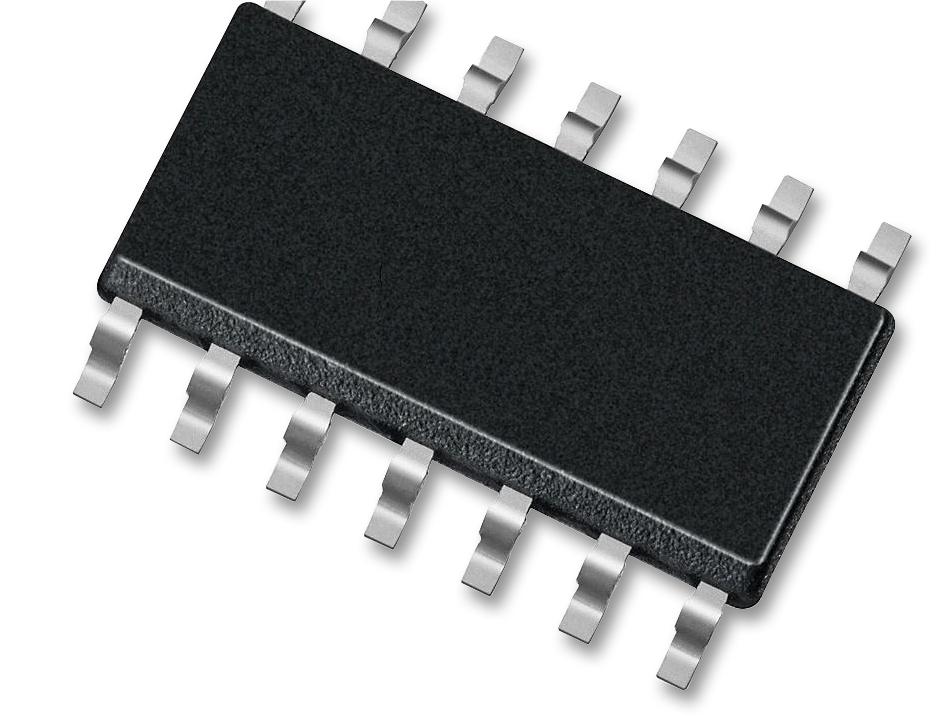

STMICROELECTRONICS HCF4093YM013TR Quad NAND Trigger IC
The HCF4093 is a quad 2-input NAND Schmitt trigger IC fabricated with metal oxide semiconductor technology, available in a compact SO14 package. It features four Schmitt trigger circuits with no external components needed, offering high noise immunity and hysteresis voltage up to 2.3 V at 10 V supply. Suitable for automotive, industrial, computer, and consumer applications, it provides fast switching, low input leakage, and robust ESD protection. Operating across -55°C to +125°C, it ensures reliable performance in demanding environments.
STMICROELECTRONICS HCF4093YM013TR Quad NAND Trigger IC Specifications:
- Package: SO14
- Supply Voltage Range: 3V to 20V
- Hysteresis Voltage: Typical 0.9 V at 5 V, 2.3 V at 10 V
- Maximum Input Leakage Current: 100 nA at 18 V, 25°C
- Operating Temperature: -55°C to +125°C
- ESD Protection: 2 kV HBM, 200 V MM, 1 kV CDM
- Quiescent Current: Up to 20 V supply, 100% tested
- Pin Count: 14
- Suitable for industrial, automotive, computer, and consumer electronics
- High noise immunity with no external components required
Buy the STMicroelectronics HCF4093 – Reliable Schmitt Trigger for Industrial Applications
Order the Quad NAND Trigger IC online today and ensure reliable switching with excellent noise immunity, wide temperature range, and robust ESD protection. Perfect for automotive, industrial, and digital signal processing projects, this high-performance device delivers swift response times, low input leakage, and consistent operation across diverse environments. Convenient online purchase options guarantee quick delivery, enabling you to enhance your electronic designs with a proven, durable component designed for demanding applications. Invest in quality and performance now.
Buy STMicroelectronics HCF4093 now and experience unmatched reliability and performance in industrial and electronic signal processing applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS HCF4093YM013TR?
You can click on the BUY or RFQ button to purchase HCF4093YM013TR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part HCF4093YM013TR?
You can download the HCF4093YM013TR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of HCF4093YM013TR?
STMICROELECTRONICS
