STMICROELECTRONICS ISOSD61L High-Speed Isolated Sigma-Delta Modulator
The ISOSD61L is a 16-bit isolated Sigma-Delta modulator designed for accurate analog-to-digital conversion with embedded transformer technology. It converts differential analog inputs up to +320mV into a high-speed, 25 Msps digital stream, suitable for industrial motor control, solar inverters, UPS, and factory automation. This device offers robust galvanic isolation with 6000 Vpeax withstand voltage and 1200 Vpeax working voltage. Its features include low noise, high linearity, and extended temperature operation from -40°C to +125°C, ensuring reliable performance in harsh environments.
STMICROELECTRONICS ISOSD61L High-Speed Isolated Sigma-Delta Modulator Specifications:
- Resolution: 16 bits
- Full Scale Input Range: +320 mV
- Sampling Rate: 25 Msps
- Analog Input Voltage: -320 mV to +320 mV
- Temperature Range: -40°C to +125°C
- Isolation Voltage: 6000 Vpeax
- Working Voltage: 1200 Vpeax
- High Common-mode Transient Immunity: 30 kV/μs
- Package Type: SO-16 Wide
- VDD Voltage: 3.0 V to 5.5 V
- Signal-to-Noise Ratio: 86 dB
- Effective Number of Bits: 13 bits
- Total Harmonic Distortion: -83 dB
- Power Consumption: 35 mA at 25 MHz
- Interfaces: LVDS and TTL/CMOS options
- Dimensions: Standard SO-16 size

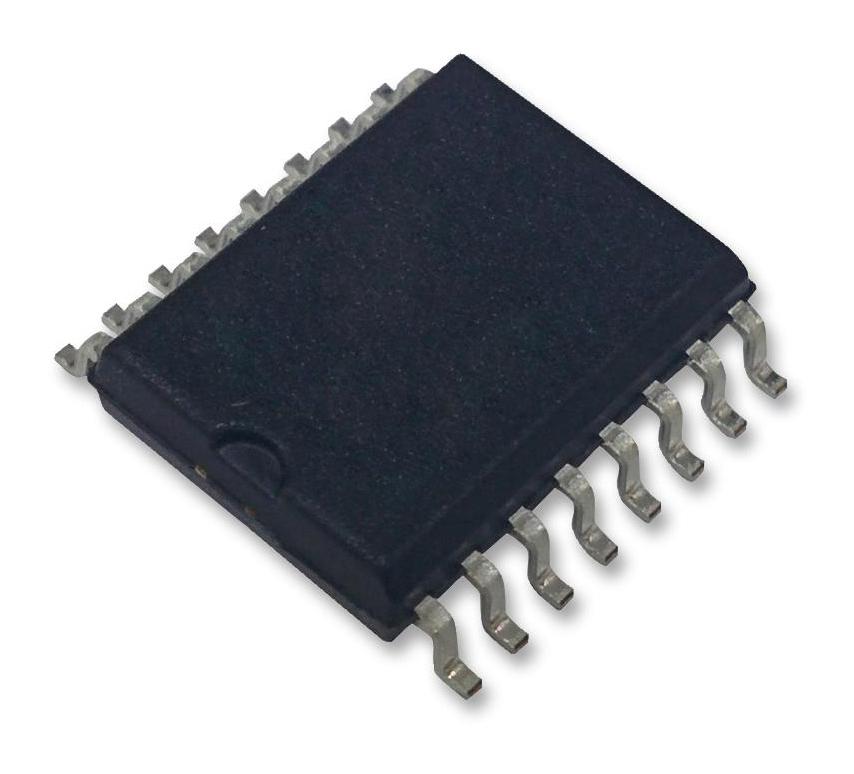

Buy the Buy STMicroelectronics ISOSD61L Part Number ISOSD61L Online
Enhance your industrial applications with the STMicroelectronics ISOSD61L, a 16-bit isolated Sigma-Delta modulator delivering high-speed, precise digital conversion for voltage, current sensing, and automation systems. Its embedded transformer technology ensures superior galvanic isolation, withstanding up to 6000 Vpeax. Operating from -40°C to +125°C and compatible with LVDS and TTL/CMOS interfaces, this device offers low noise, excellent linearity, and robust performance under challenging conditions. Perfect for motor control, solar inverters, UPS, and factory automation—order online today for reliable, high-quality data acquisition.
Buy STMicroelectronics ISOSD61L now and experience unmatched reliability and performance in industrial isolation and high-speed data conversion.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS ISOSD61L?
You can click on the BUY or RFQ button to purchase ISOSD61L from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part ISOSD61L?
You can download the ISOSD61L datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of ISOSD61L?
STMICROELECTRONICS
