STMICROELECTRONICS LIS3MDLTR 3-axis magnetometer
This ultra-low power, high-performance 3-axis magnetometer features configurable full scales of ±4, ±8, ±12, and ±16 gauss. It supports continuous and single-conversion modes, providing 16-bit data output, an interrupt generator, self-test capability, and digital interfaces via I2C or SPI. Operable over a wide voltage range with an independent I/O of 1.8V, it includes power-down and low-power modes, making it ideal for magnetic field detection applications such as compasses and magnetic sensors. The compact LGA-12 package ensures reliable, energy-efficient magnetic sensing for portable and industrial devices.
STMICROELECTRONICS LIS3MDLTR 3-axis magnetometer Specifications:
- Package: LGA-12 (2.0x2.0x1.0 mm)
- Supply Voltage: 1.9 V to 3.6 V
- IO Supply: 1.8 V
- Magnetic Full-scale: ±4/ ±8/ ±12/ ±16 gauss
- Data Output: 16-bit
- Operating Mode: Continuous and single conversion
- Features: Interrupt generator, self-test
- Power Modes: Power-down, low-power
- Operating Temperature Range: -40°C to +85°C
- Interfaces: I2C, SPI (standard and fast modes)
- Sensitivity: 6842 LSB/gauss at ±4 gauss, 3421 at ±8, 2281 at ±12, 1711 at ±16
- Zero-gauss level offset: ~1 gauss
- Self-test: Yes
- Package compliance: RoHS and ECOPACK®, Green standards
- Application: Magnetic sensors, compasses, electronic navigation
- Temperature range: -40°C to +85°C

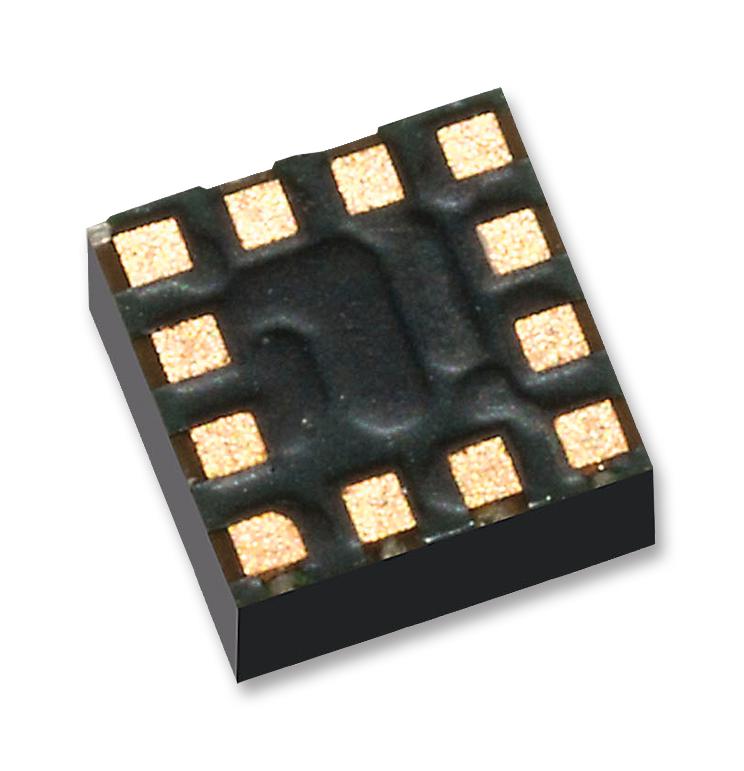

Buy the Buy ST LIS3MDL Part Number LIS3MDLTR Online
Discover the ST LIS3MDLTR 3-axis magnetometer, offering ultra-low power consumption, configurable full scales, and high-precision magnetic detection. Perfect for use in compasses, sensors, and portable navigation devices, this compact module features digital interfaces supportive of I2C and SPI, advanced self-test, and flexible power modes. With operating temperatures from -40°C to +85°C and RoHS compliance, it ensures durability and efficiency in demanding environments. Purchase online today to incorporate this reliable magnetic sensor into your next project securely and conveniently.
Order your ST Series LIS3MDLTR magnetometer today and enhance your magnetic sensing projects with reliable high-performance detection.
