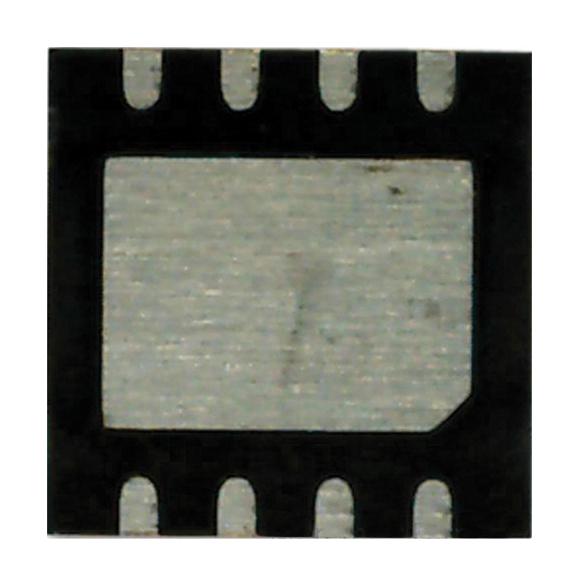

STMICROELECTRONICS M24C16FMC6TG EEPROM Memory
The M24C16F is a 16-Kbit EEPROM organized as 2 K x 8 bits, compliant with I2C protocols and operating over a voltage range from 1.6V to 5.5V. It supports standard 400 kHz clock frequency, features write protection, data retention over 200 years, and over 4 million write cycles. Available in compact packages such as DFN8, WLCSP, TSSOP8, SO8N, and PDIP8, it is suitable for applications requiring reliable non-volatile memory with low power consumption and robust ESD protection.
STMICROELECTRONICS M24C16FMC6TG EEPROM Memory Specifications:
- Memory Size: 16 Kbit (2 K x 8 bits)
- Operating Voltage: 1.6 V to 5.5 V (F variant), 1.8 V to 5.5 V (R variant), 2.5 V to 5.5 V (W variant)
- Clock Frequency: 400 kHz
- Write Cycle Time: within 5 ms
- Data Retention: over 200 years
- Write Endurance: more than 4 million cycles
- Temperature Range: from -40 °C up to +85 °C
- Protection Features: Write protect of entire memory, enhanced ESD/latch-up protection
- Packages Available: DFN8, WLCSP, TSSOP8, SO8N, PDIP8
- Pin Configuration: 8-pin packages with specific mechanical dimensions as per package type
- Device Reset: Power-on-reset circuit for stable startup
- Device Addressing: 7-bit address with internal address register for sequential and random reads
- Data Input/Output: Open drain SDA line with pull-up resistor, input/output levels compatible with Vcc
- Power-up conditions: Vcc must rise gradually; device responds after crossing POR threshold
- Power-down conditions: device enters standby when Vcc drops below minimal operating voltage
- Package Mechanical Data: Dimensions and footprints for various package options including DFN8, TSSOP8, SO8N, PDIP8
Buy the ST Series 16-Kbit EEPROM: M24C16FMC6TG
Purchase the ST Series 16-Kbit EEPROM M24C16FMC6TG online now and benefit from reliable data retention, fast 400 kHz I2C communication, and multiple compact package options suitable for embedded systems and IoT applications. Designed for low power consumption and high endurance, this EEPROM supports over 4 million write cycles, ensuring your projects are protected with multiple layers of safeguard features like write protection and enhanced ESD protection. Fast delivery available for your convenience.
Order your ST Series 16-Kbit EEPROM M24C16FMC6TG today and give your projects the dependable quality they deserve, with compact packages and high data retention.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS M24C16FMC6TG?
You can click on the BUY or RFQ button to purchase M24C16FMC6TG from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part M24C16FMC6TG?
You can download the M24C16FMC6TG datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of M24C16FMC6TG?
STMICROELECTRONICS
