STMICROELECTRONICS MASTERGAN4TR GaN Half-Bridge Driver
The MASTERGAN4 is a high-performance 600V half-bridge driver integrating two enhancement-mode GaN transistors in a compact QFN9x9x1mm package. It features UVLO protection on both high-side and low-side drivers, an internal bootstrap diode, interlocking function to prevent cross-conduction, and precise embedded timing control. Designed for applications like chargers, high-voltage PFC, DC-DC, and inverter systems, it offers fast switching, thermal safety, and easy interfacing with microcontrollers over a temperature range of -40°C to 125°C. Its efficient design reduces component count and enhances power density and reliability.
STMICROELECTRONICS MASTERGAN4TR GaN Half-Bridge Driver Specifications:
- Drain-source Voltage: 650 V
- VCC Logic Supply Voltage: 4.75 to 5.95 V
- PVCC Low-side Driver Supply Voltage: 3.85 to 5.65 V
- Input Voltage Range: 0 to 20 V
- Switching Frequency: Up to 500 kHz
- Junction Temperature Range: -40°C to 125°C
- Thermal Resistance Junction-to-Ambient: 17.8 °C/W
- GaN on/off drain-source current: 13.3 A (peak)
- Gate Threshold Voltage: -17 V
- Bootstrap Voltage: Up to 620 V
- Size: 9 x 9 x 1 mm, 31 pins, pitch 0.6 mm
- Peak Drain Current: 42 A
- Gate charge: 15 nC
- Output Capacitance: 47 pF
- Reverse Recovery Charge: 0 nC
- Protection: Over Temperature, UVLO, thermal shutdown

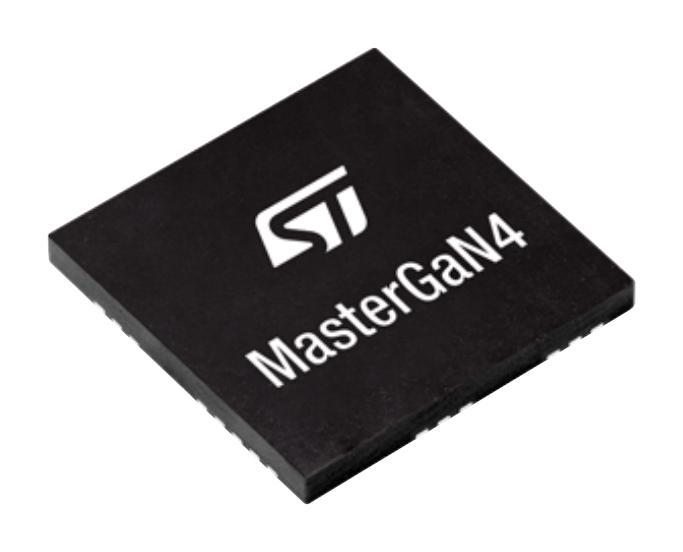

Buy the Buy STMicroelectronics MASTERGAN4 Part Number MASTERGAN4TR Online
Get your STMicroelectronics MASTERGAN4 GaN half-bridge driver now and optimize your power systems. This compact, high-voltage driver features integrated protection, UVLO, fast switching, and thermal safety, making it ideal for chargers, PFC, DC-DC converters, and inverters. Easily interface with microcontrollers and enjoy reduced component count and enhanced efficiency. Available in a 9x9 mm QFN package, it ensures robust performance across a wide temperature range. Order online today and improve your high-power applications with confidence.
Order your STMicroelectronics MASTERGAN4 high-voltage GaN half-bridge driver today and enhance your power conversion efficiency with reliable high-density solutions.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS MASTERGAN4TR?
You can click on the BUY or RFQ button to purchase MASTERGAN4TR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part MASTERGAN4TR?
You can download the MASTERGAN4TR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of MASTERGAN4TR?
STMICROELECTRONICS
