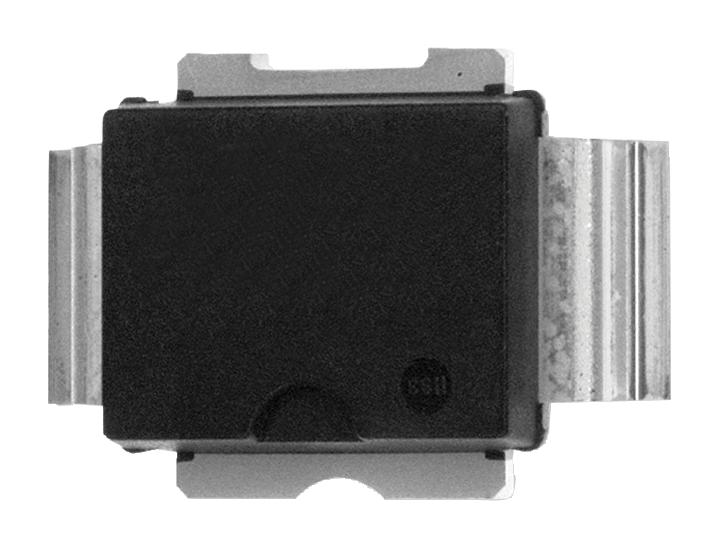

STMICROELECTRONICS PD57060E RF Power Transistor
The PD57060E is a high-performance RF power MOSFET designed for broad bandwidth commercial and industrial applications. Operating at 28 V, it delivers 60 W output power with excellent linearity and gain up to 1 GHz. Packaged in the PowerSO-10RF true SMD plastic package, it features superior thermal stability and reliability, making it ideal for base station use. Its advanced LDMOS technology ensures high linearity, easy assembly, and robust operation in demanding RF environments, supported by optimized mounting recommendations.
STMICROELECTRONICS PD57060E RF Power Transistor Specifications:
- Maximum Drain-Source Voltage: 65 V
- Gate-Source Voltage: +20 V
- Drain Current: 7 A
- Power Dissipation: 79 W at Tc = 70°C
- Maximum Junction Temperature: 165°C
- Storage Temperature Range: -65°C to +150°C
- Junction-Case Thermal Resistance: 1.0 °C/W
- Frequency Range: Up to 1 GHz
- Output Power: 60 W at 945 MHz, 28 V supply
- Gain: 14.3 dB at 945 MHz/28 V
- Input and Output Impedance: Approx. 0.646 + j0.694 Ω and 1.577 - j0.997 Ω respectively at 890 MHz
- Package: PowerSO-10RF, formed and straight lead options
- Moisture Sensitivity Level: MSL 3
Buy the ST Series RF Power Transistor: PD57060E
Purchase the ST Series RF Power Transistor PD57060E online today and ensure your RF systems operate at peak performance. With 60 W output at 945 MHz, high gain and superior linearity, it is ideal for base station applications and industrial RF equipment. The advanced PowerSO-10RF plastic package guarantees excellent thermal stability, ease of assembly, and long-term reliability. Elevate your wireless communication projects with a proven, high-quality RF power device designed for demanding environments. Order now for fast and secure delivery.
Buy ST Series RF Power Transistor PD57060E now and experience unmatched reliability and performance with high linearity and efficient power output.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS PD57060E?
You can click on the BUY or RFQ button to purchase PD57060E from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part PD57060E?
You can download the PD57060E datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of PD57060E?
STMICROELECTRONICS
