STMICROELECTRONICS PWD5F60 High-Voltage Power Driver
The PWD5F60 is a highly integrated power system-in-package combining dual half-bridge modules with high-voltage MOSFETs and gate drivers in a compact VFQFPN 15x7x1 mm package. It features a 600 V drain-source breakdown voltage, integrated bootstrap diode, UVLO protection on both low-side and high-side sections, and uncommitted comparators for overcurrent and overtemperature protections. The device is suitable for industrial drives, pumps, fans, and automation, providing efficient load control, adjustable dead-time, and easy microcontroller interfacing in a space-saving design.
STMICROELECTRONICS PWD5F60 High-Voltage Power Driver Specifications:
- Package: VFQFPN 15x7x1 mm
- Drain-Source Breakdown Voltage: 600 V
- Maximum VCC supply voltage: 20 V
- Power Dissipation: 5 W at 25°C
- Thermal Resistance Junction-Ambient: 25 °C/W
- Junction Temperature Range: -40 °C to 125 °C
- Gate Threshold Voltage: 3 to 4 V
- Maximum Continuous Drain Current: 2 A per MOSFET
- Peak Drain Current: 14 A
- Input Voltage Range (Logic): 0 to 15 V
- UVLO Threshold VCC: 9.95 to 10 V ON, 7.68 to 8.4 V OFF
- Bootstrap Voltage: up to 600 V
- Operating Temperature: -40 °C to 125 °C
- Spike Energy (Single Pulse): 132 mJ
- Reverse Recovery Time: 88 ns at 25°C

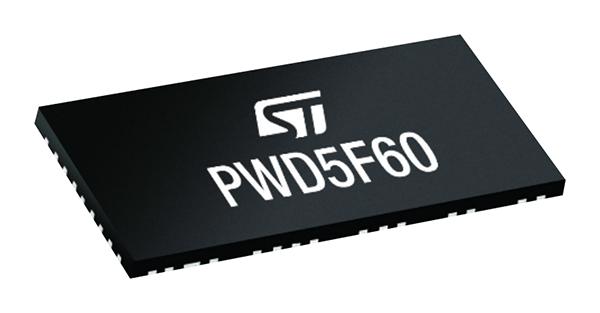

Buy the Buy STMicroelectronics PWD5F60 Part Number PWD5F60 Online
