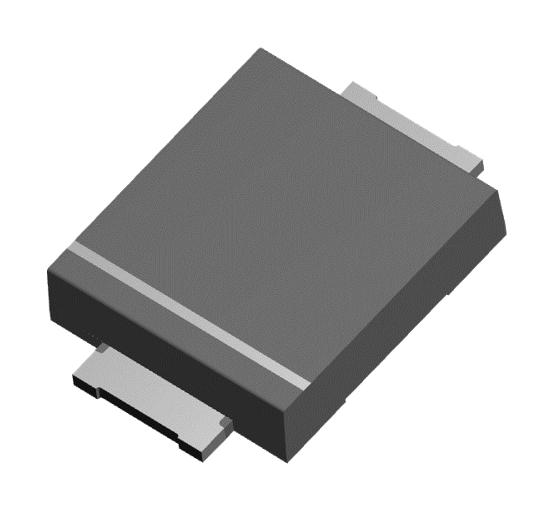

STMICROELECTRONICS SMB15F14A TVS Diode Array
The SMB15F14A series are monolithic TVS diode arrays designed to protect sensitive electronic circuits against high-voltage surges. Utilizing planar technology, these unidirectional devices offer low leakage current of 0.2 UA at 25 °C, high peak pulse power of 1500 W (10/1000 ps), and a flat, thin profile of 1 mm for space-saving application. They meet strict industry standards including UL94VO, IEC 61000-4-4 level 4, and JEDEC specifications, ensuring robustness, reliability, and long-term stability in harsh environments, making them ideal for high-performance electronics and industrial systems.
STMICROELECTRONICS SMB15F14A TVS Diode Array Specifications:
- Peak pulse power: 1500 W (10/1000 ps), 10 kW (8/20 us)
- Stand-off voltage range: 5 V to 64 V
- Leakage current: 0.2 UA at 25 °C, 1 UA at 85 °C
- Maximum operating junction temperature: 175°C
- Maximum storage temperature: -55°C to +175°C
- Maximum lead soldering temperature: 260 °C for 10 s
- Package: SMB Flat, thickness: 1 mm
- Lead plating: Matte tin
- Compliance: UL94VO, JEDEC registered, IEC 61000-4-4 level 4, IEC 61000-4-2 level 4
- Dimensions: Length varies with model, typical length 4.05–5.60 mm, width 1.95–3.95 mm, height 0.15–0.40 mm
- Peak pulse voltage: contact discharge 30 kV, air discharge 30 kV
Buy the STMicroelectronics SMB15F14A – Reliable TVS Diode Array for Industrial Applications
Secure your electronic circuits with the STMicroelectronics SMB15F14A TVS diode array. Offering 1500W peak pulse power, low leakage current, and a compact 1mm flat package, it ensures superior surge protection for industrial and high-performance electronic systems. Compliant with IEC 61000-4-4 and UL standards, this device guarantees reliable long-term operation in harsh environments. Easy to integrate into various designs, the SMB15F14A is a dependable choice for protecting sensitive components against transients and voltage surges, enhancing system robustness and safety.
Buy STMicroelectronics SMB15F14A now and experience unmatched surge protection and high power reliability, perfect for high-end industrial electronics and sensitive circuit protection.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F14A?
You can click on the BUY or RFQ button to purchase SMB15F14A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F14A?
You can download the SMB15F14A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F14A?
STMICROELECTRONICS
