STMICROELECTRONICS SMB15F58AY Automotive TVS Diodes
The SMB15F58AY series are automotive-qualified TVS diodes designed for high energy surge suppression in automotive electronics. Featuring a flat, thin 1 mm package and unidirectional operation, they provide peak pulse power of 1500 W (10/1000 ps) and 10 kW (8/20 µs). These diodes operate at a maximum junction temperature of 175°C with low leakage current of 0.2 μA at 25°C and 1 μA at 85°C. Compliant with UL94, J-STD-020, and IEC standards, they are ideal for protecting sensitive circuits against ISO 7637-2 surges and electrostatic discharges, ensuring long-term reliability in automotive environments.
STMICROELECTRONICS SMB15F58AY Automotive TVS Diodes Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 µs)
- Package: SMB flat, thin 1 mm
- Stand-off voltage range: 5 V to 64 V
- Maximum junction temperature: 175°C
- Leakage current: 0.2 μA at 25°C, 1 μA at 85°C
- Lead finishing: matte tin plated
- Operating temperature: -55°C to +175°C
- Compliance: UL94VO, J-STD-020 Level 1, IEC 61000-4-2 Level 4
- Unidirectional, automotive grade
- Solderable leads with JEDEC package outline
- Maximum clamping voltage: varies with peak pulse current
- Maximum surge current in both directions: 30 kV electrostatic discharge
- Surge capability for ISO 7637-2 pulses

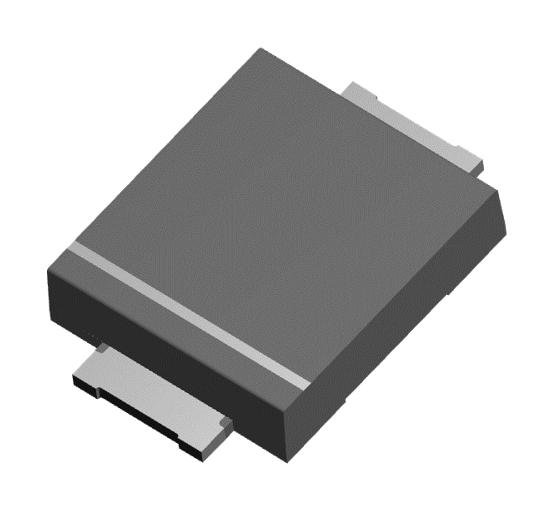

Buy the STMicroelectronics Series SMB Automotive TVS Diode: SMB15F58AY
Enhance your automotive electronic protection with the STMicroelectronics Series SMB15F58AY TVS diode. With a peak pulse power of 1500 W and a flat 1 mm package, this unidirectional diode offers low leakage current, high temperature operation, and compliance with industry standards. Perfect for safeguarding sensitive circuits against surges and electrostatic discharges, it provides long-term reliability. Purchase online today to secure dependable surge protection and improve your vehicle's electronic system resilience efficiently and easily.
Order your STMicroelectronics Series SMB15F58AY automotive TVS diode today and ensure reliable surge and ESD protection for your automotive circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F58AY?
You can click on the BUY or RFQ button to purchase SMB15F58AY from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F58AY?
You can download the SMB15F58AY datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F58AY?
STMICROELECTRONICS
