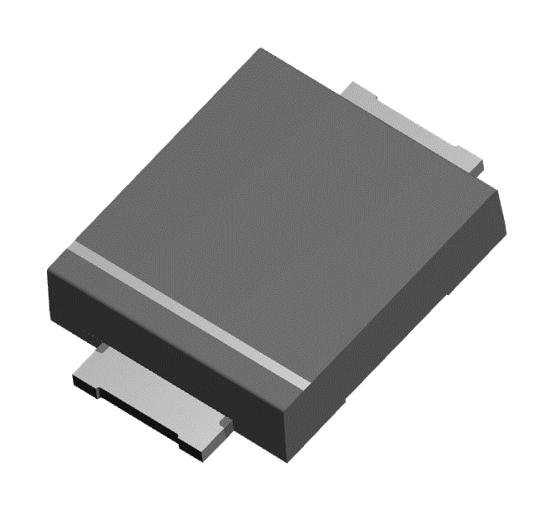

STMicroelectronics SMB15F60A Surge Protector
The SMB15F60A series surge suppressors are optimized for high-power circuit protection, supporting peak pulse power of 1500 W in a slim 1 mm flat package. Designed with planar technology, they offer low leakage current, high junction temperature tolerance, and unidirectional surge protection, ideal for sensitive electronics. Compliant with standards like UL94 VO and MIL-STD-750, these devices feature a stand-off voltage range from 5 V to 64 V, robust construction with matte tin plated leads, and are suitable for various industrial and electronic applications requiring reliable transient voltage suppression.
STMicroelectronics SMB15F60A Surge Protector Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Package height: 1 mm, Flat and thin design
- Stand-off voltage: from 5 V to 64 V
- Leakage current: 0.2 UA at 25 °C and 1 UA at 85 °C
- Maximum junction temperature: 175°C
- Operating temperature range: -55°C to +175°C
- Maximum lead temperature during soldering: 260°C for 10 seconds
- Compliance: UL94 VO, J-STD-020 MSL Level 1
- Peak pulse current: up to 1500 W capacity
- Lead finish: matte tin plating
- Standards: IEC 61000-4-4 level 4, IEC 61000-4-2 level 4
- Green environmentally friendly packaging: ECOPACK
- Package outline: JEDEC registered SMB Flat with specific mechanical dimensions
- Reflow soldering profile: 240-245°C with carefully controlled thermal cycle
- Markings: includes specific part markings and orientation for automated assembly
Buy the STMicroelectronics Series SMB Flat Surge Protector: SMB15F60A
Secure your sensitive electronic circuits with the STMicroelectronics SMB15F60A surge protector. Capable of handling 1500 W peak pulse power in a compact, flat package, it offers unidirectional surge suppression for voltage from 5 V to 64 V. Its low leakage current, high junction temperature tolerance, and compliance with industry standards make it ideal for protecting delicate devices in industrial, automotive, and telecom applications. Purchase online now for dependable surge protection that guarantees long-term reliability and maximum safety in your electronic systems.
Order your STMicroelectronics Series SMB15F60A high-power surge protector today and ensure reliable circuit protection with advanced flat package technology.
Frequently Asked Questions
Where can I buy STMicroelectronics SMB15F60A?
You can click on the BUY or RFQ button to purchase SMB15F60A from an authorized STMicroelectronics distributor.
How do I troubleshoot issues or seek technical support for part SMB15F60A?
You can download the SMB15F60A datasheet or visit the STMicroelectronics website for support.
Who is the manufacturer of SMB15F60A?
STMicroelectronics
