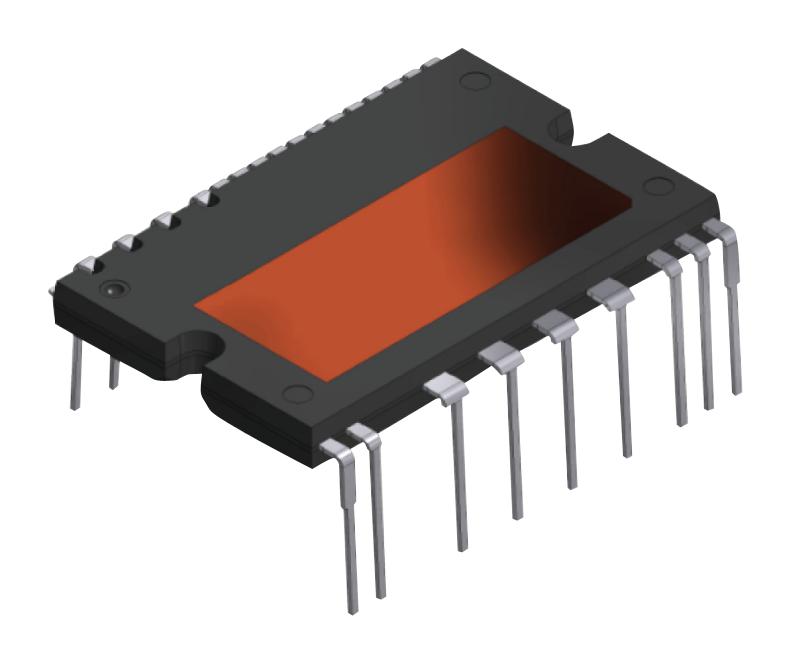

STMICROELECTRONICS STEVALIPMM15B Motor Control Power Module
The STEVAL-IPMM15B is a compact motor control power board utilizing the SLLIMM 2nd series MOSFET IPM, specifically the STIB1560DM2T-L. Designed for high power motor applications, it features a small size, minimal BOM, and high efficiency. The board supports input voltages from 125 to 400 VDC, with a nominal power of up to 1500 W and current of up to 6 A. It provides flexible current sensing options, overcurrent protection, temperature monitoring, and is compatible with ST STM32 microcontrollers for precise field-oriented control of three-phase motors such as induction and BLDC motors. It is ideal for white goods, air conditioners, and power tools.
STMICROELECTRONICS STEVALIPMM15B Motor Control Power Module Specifications:
- Input voltage: 125 - 400 VDC
- Nominal power: up to 1500 W
- Maximum power depends on application and cooling
- Nominal current: up to 6 A
- Input auxiliary voltage: up to 20 V DC
- MOSFET: STIB1560DM2T-L, SLLIMM™ 2nd series
- Includes overcurrent and overvoltage protection
- Temperature sensing with NTC inside
- Compatible with STM32 microcontrollers for FOC control
- Board size: very compact, suitable for space-constrained applications
- Features Hall sensor or encoder input for motor feedback
Buy the STMicroelectronics STEVAL-IPMM15B – Reliable Motor Drive Power Module for Industrial Applications
Experience reliable and efficient motor control with the STEVAL-IPMM15B, a compact power board designed for high power applications. Featuring up to 1500W power capability, flexible current sensing options, and advanced protection features, it is ideal for white goods, air conditioning units, power tools, and inverters. Its compatibility with STM32 microcontrollers enables precise control using field-oriented control techniques. Designed for space-constrained environments, this module ensures durable operation, easy integration, and optimal performance for industrial motor drives. Order online today for efficient motor management.
Get STMicroelectronics STEVAL-IPMM15B today—built for high power motor control with flexible sensing and protection features.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALIPMM15B?
You can click on the BUY or RFQ button to purchase STEVALIPMM15B from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALIPMM15B?
You can download the STEVALIPMM15B datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALIPMM15B?
STMICROELECTRONICS
