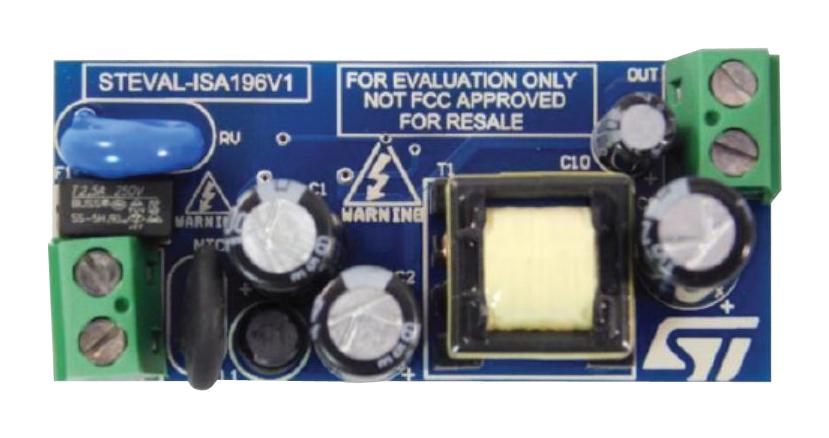

STMICROELECTRONICS STEVALISA196V1 flyback converter
The STEVAL-ISA196V1 evaluation board features a 5 V/1.2 A non-isolated flyback converter designed for broad-range mains power applications. Powered by the VIPer11 high-voltage converter from the VIPerPlus family, it integrates an 800 V rugged power MOSFET with PWM current-mode control for high efficiency and low standby power consumption. Its compact, single-layer design with minimal BOM simplifies implementation. Suitable for general purpose, the converter meets EMI standards according to EN55022-Class-B, making it ideal for energy-efficient power supplies and embedded solutions.
STMICROELECTRONICS STEVALISA196V1 flyback converter Specifications:
- Input Voltage Range: 85Vac to 265Vac
- Output Voltage: 5 V
- Output Current: 1.2 A
- Rated Power: 6 W
- No Load Power @230 Vac: < 10 mW
- Active Efficiency: > 78%
- EMI Compliance: EN55022-Class-B
- High-Voltage IC: VIPer11 with 800 V MOSFET
- Power Mode: PWM current-mode control
- Size: Compact, single-layer design
- RoHS Compliant
- Developed: September 2017
Buy the STMicroelectronics VIPer11 U– Reliable Flyback Converter for Industrial Applications
Purchase the STMicroelectronics STEVAL-ISA196V1 evaluation board online today and enhance your power conversion projects. This compact, high-efficiency flyback converter integrates the VIPer11 IC, providing broad voltage input range, optimized power output, and low no-load consumption. Ideal for industrial, embedded, and general-purpose applications, it ensures compliance with EMI standards and offers a minimal bill of materials for easier implementation. Elevate your energy efficiency and reliability—buy now and streamline your power electronics development.
Buy STMicroelectronics STEVAL-ISA196V1 now and experience unmatched reliability and high efficiency in your power supply designs.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISA196V1?
You can click on the BUY or RFQ button to purchase STEVALISA196V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISA196V1?
You can download the STEVALISA196V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISA196V1?
STMICROELECTRONICS
