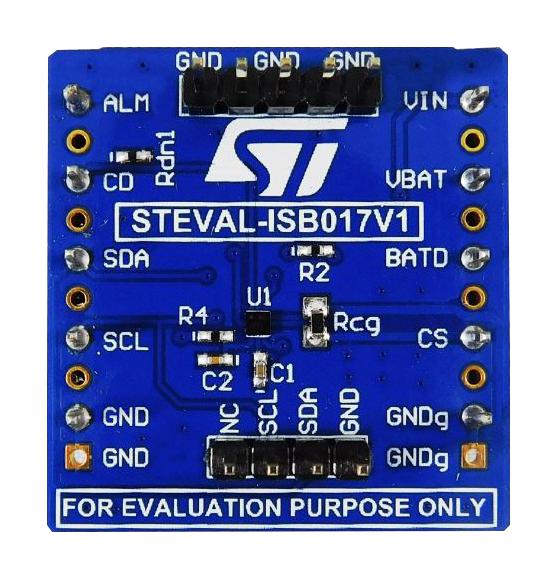

STMICROELECTRONICS STEVALISB017V1 battery gauge and charger control module
The STC3117 evaluation board, part of the STEVAL-ISB017V1 series, features an integrated gas gauge IC with battery charging control. It incorporates the patented OptimGauge™ algorithm for precise state-of-charge (SOC) monitoring, battery health indication, and tracks parameters like temperature, aging, and voltage. The board offers functions such as low battery warning, missing/swapped battery detection, and end-of-charge detection. Compact in size with a 9-bump CSP package measuring 1.49 x 1.594 mm, it is RoHS compliant and suitable for handheld applications requiring reliable battery management and fault detection.
STMICROELECTRONICS STEVALISB017V1 battery gauge and charger control module Specifications:
- Package: 1.49 x 1.594 mm 9-bump CSP
- RoHS compliant
- Battery monitoring algorithm: OptimGauge™
- Functions: Low SOC alarm, battery swap detection, missing/swapped battery detection, end-of-charge detection
- Power consumption: 40 uA in voltage-only, 2 uA in standby
- Includes internal temperature sensor
- Fault indication: Low voltage, low SOC, hardware faults
- Application: Handheld, portable devices
- Supports accurate battery state-of-health (SOH) monitoring
- Operates within automated, accurate, and safe battery management parameters
Buy the STMicroelectronics Series Battery Gauge: STEVAL-ISB017V1
Enhance your portable device with the STMicroelectronics battery management module. Featuring integrated algorithms, fault detection, and low power consumption, this compact board ensures safe and reliable battery monitoring. Its advanced features include low SOC alarm, missing or swapped battery detection, end-of-charge signaling, and internal temperature sensing. Ideal for handheld applications, it supports accurate state-of-health assessments and extends battery life. Purchase online now for durable performance and seamless integration into your electronic systems.
Get STMicroelectronics STEVAL-ISB017V1 today—built for reliable battery management and fault detection in portable devices.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISB017V1?
You can click on the BUY or RFQ button to purchase STEVALISB017V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISB017V1?
You can download the STEVALISB017V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISB017V1?
STMICROELECTRONICS
