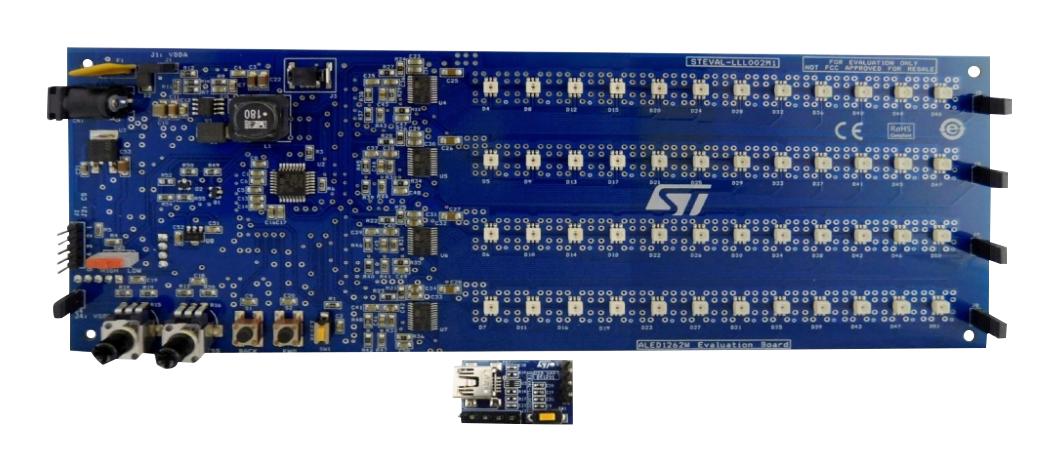

STMICROELECTRONICS STEVALLLL002V1 Automotive LED Lighting Kit
The STEVAL-LLLO02V1 evaluation kit is designed for testing automotive rear lights with pattern animations using a 12 x 4 red LED matrix. It features programmable pattern control, 7-bit PWM local dimming with non-linear steps for human eye brightness perception, speed control, mode switching via push buttons, safety standalone mode, OTP pre-programmed configurations, and a fast USB-C interface with extended Hamming encoding. Powered by a 12 to 24 V DC supply with reverse polarity protection, it includes a GUI for advanced driver configuration, and a USB-UART bridge for PC connection. Suitable for automotive lighting applications, it complies with RoHS and WEEE standards.
STMICROELECTRONICS STEVALLLL002V1 Automotive LED Lighting Kit Specifications:
- Power Supply: 12 to 24 V DC with reverse polarity protection
- LED Matrix: 12 x 4 red LED pattern display
- Control: 7-bit PWM local dimming with non-linear brightness steps
- Microcontroller: STM8AF6266 for system control and mode switching
- Driver: ALED1262ZT LED driver with diagnostics
- Communication: USB-UART bridge for PC interface and GUI control
- Operating Modes: Bus driven, standalone, and GUI mode
- Protection: Reverse polarity, fault simulation, open circuit fault testing
- Mounting Standards: Automotive-grade components, RoHS and WEEE Compliance
- Physical: Evaluation board with connectors for debugging and power input
- Additional Features: Speed control, safety mode, OTP configuration, open error detection
Buy the STMicroelectronics Series Automotive Lighting: STEVALLL002V1
Enhance your automotive lighting projects with the STMicroelectronics LED evaluation kit. Featuring programmable patterns, local dimming, safety modes, and PC control via USB-UART, this kit offers comprehensive features for testing, development, and deployment. Its robust design, reverse polarity protection, and compliance with RoHS and WEEE standards ensure safety and durability. Whether you're developing innovative automotive rear lights or conducting research, this versatile kit provides precise control, diagnostics, and easy configuration through a user-friendly GUI. Upgrade your automotive lighting solutions today.
Buy STMicroelectronics STEVALLL002V1 now and experience unparalleled control and reliability for automotive rear lighting projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALLLL002V1?
You can click on the BUY or RFQ button to purchase STEVALLLL002V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALLLL002V1?
You can download the STEVALLLL002V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALLLL002V1?
STMICROELECTRONICS
