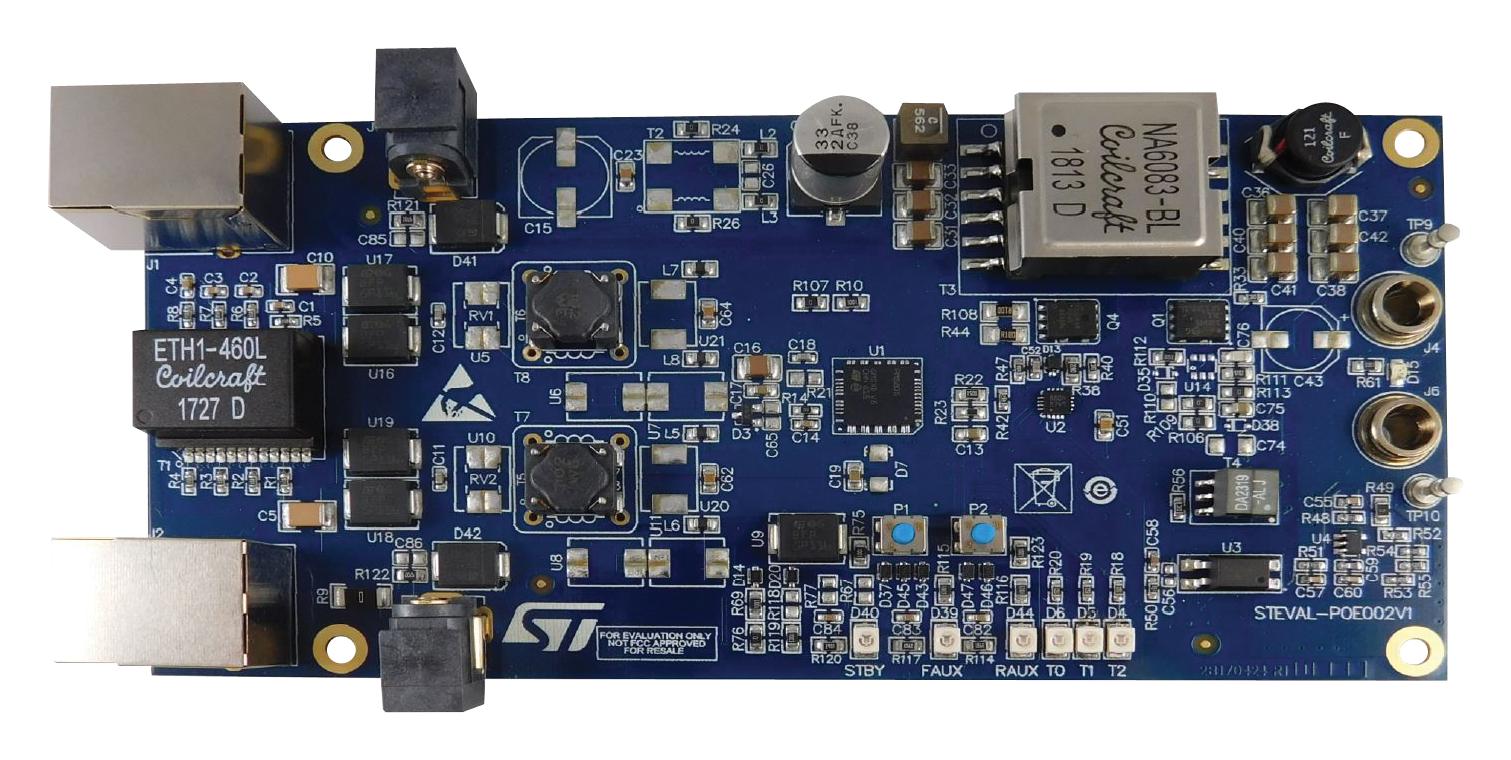

STMICROELECTRONICS STEVALPOE002V1 Power over Ethernet Converter
The STEVAL-POE002V1 is a power over Ethernet evaluation board featuring a 40 W (5 V-8 A) DC-DC converter stage managed by the PIVi8804 controller, utilizing a fixed frequency Flyback topology with secondary synchronous rectification. It integrates the PIVi8805 controller for Ethernet interface compliance with IEEE802.3af/at/bt standards, providing efficient power delivery from LAN cables or auxiliary sources. Suitable for telecom systems and PoE applications, it offers a line input voltage range of 40 to 60 V, high efficiency over 91%, and transient response within 700mV. Designed for precise power management in industrial and networking environments.
STMICROELECTRONICS STEVALPOE002V1 Power over Ethernet Converter Specifications:
- Line input voltage range: 40 to 60 V
- Output voltage: 5 V ± 2.5%
- Output current: 8A
- Peak-to-peak output ripple: < 50 mV
- DC-DC efficiency: > 91%
- Overall efficiency: > 90%
- Switching frequency: ~ 280 KHz
- Topology: Fixed frequency Flyback with synchronous rectification
- Controllers: PIVi8804 and PIVi8805 for power and Ethernet interface
- Compliance: IEEE802.3af/at/bt
- Transient response: ~ 700mV during load step
- Application: Power over Ethernet, telecom systems
- Power output: 40 W (5 V, 8 A)
Buy the Buy STMicroelectronics STEVAL-POE002V1 Power Over Ethernet Converter Part Number STEVAL-POE002V1 Online
Discover the reliable and efficient power over Ethernet evaluation board, featuring 40 watts of output power at 5 volts with 8 amps capacity. Designed for telecom and industrial networking, this board incorporates advanced synchronous rectification technology and controllers compliant with IEEE802.3bt standards. Its high efficiency exceeds 91%, ensuring minimal power losses, while its transient response handles load variations effectively. Perfect for integrating into Ethernet-powered devices, it provides a stable voltage output, optimized power management, and compatibility with LAN and auxiliary power sources, making it an ideal choice for professional networking and industrial applications.
Get STMicroelectronics STEVAL-POE002V1 today—built for efficient power delivery with high maximum output current and IEEE802.3bt compliance.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALPOE002V1?
You can click on the BUY or RFQ button to purchase STEVALPOE002V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALPOE002V1?
You can download the STEVALPOE002V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALPOE002V1?
STMICROELECTRONICS
