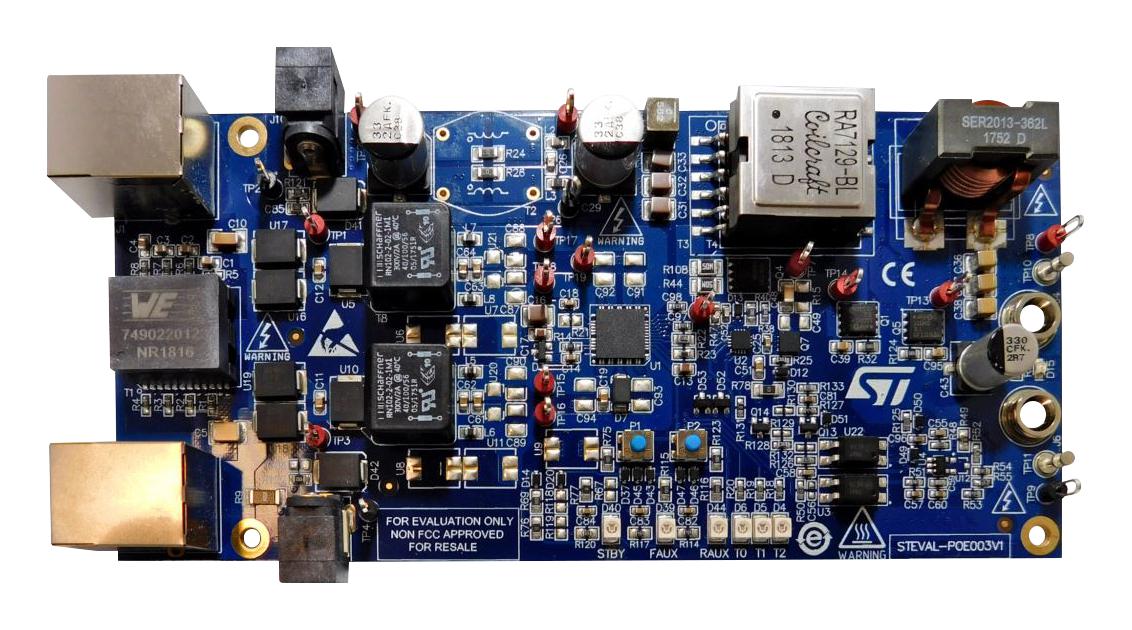

STMICROELECTRONICS STEVALPOE003V1 PoE Evaluation Board
The STEVAL-POE003V1 is a high-power PoE evaluation board designed for IEEE 802.3bt standards, capable of delivering up to 20A at 5V. It features a system in package with two active bridges, an integrated PoE-PD interface, and a DC-DC forward active clamp converter, making it suitable for medium to high power PoE applications. The board exhibits over 92% efficiency at 13A, supports power classifications, and is RoHS compliant, ideal for industrial and telecommunication uses requiring reliable power delivery.
STMICROELECTRONICS STEVALPOE003V1 PoE Evaluation Board Specifications:
- Classification: Class 8
- Vin at RJ45 connector (J1): 41.2 to 57 V
- Vout: 5V ±2%
- Output Current: 20 A max
- Max Output Power: 100 W
- Efficiency: > 92% at 13A
- Vin at frontal jack (J9): 48V ±2V
- Vin at rear jack (J10): 48V ±2V
- Operating Temperature: 0 - 50°C
- Input Power: PoE compliant, supporting IEEE 802.3bt
- Dimensions: VFQFPN 8x8 mm, 6 exposed pads; Controller VFQFPN 3.0x3.0x1.0 mm, 0.5 mm pitch
- RoHS and WEEE Compliance
- Supports high power 4-pair applications
- Integrated hot-swap MOSFET, dual active bridges, and PWM controller
Buy the Buy STMicroelectronics PoE Evaluation Board Part Number STEVALPOE003V1 Online
Enhance your networking and power management projects by ordering the STMicroelectronics STEVAL-POE003V1 high-power PoE evaluation board online. This advanced testing platform supports IEEE 802.3bt standards, provides up to 20A at 5V, and offers high efficiency exceeding 92% at full load. Its robust design includes integrated active bridges, a PoE-PD interface, and a DC-DC converter, making it suitable for telecom, industrial automation, and high-power PoE applications. Get dependable performance and quick delivery by purchasing online today.
Order your STMicroelectronics STEVAL-POE003V1 high-power PoE evaluation board today and ensure reliable power delivery for industrial and telecommunication projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALPOE003V1?
You can click on the BUY or RFQ button to purchase STEVALPOE003V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALPOE003V1?
You can download the STEVALPOE003V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALPOE003V1?
STMICROELECTRONICS
