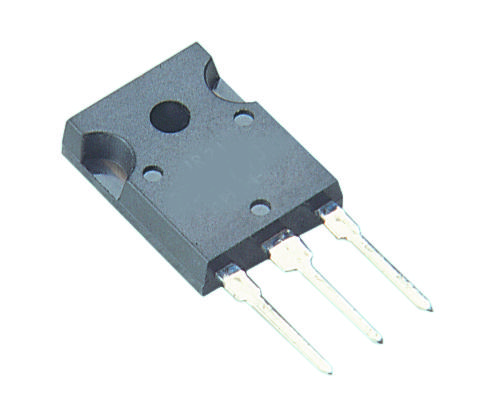

STMICROELECTRONICS STGW30NC120HD PowerMESH IGBT
The STGW30NC120HD is a high-speed N-channel PowerMESH™ IGBT designed for induction heating and soft switching applications. Utilizing advanced high-voltage technology and a patented strip layout, this IGBT family offers outstanding performance. The 'H' suffix indicates it's optimized for high-frequency operation, providing very high switching performance with reduced switching losses and maintaining a low voltage drop. Key features include low conduction losses, low collector-emitter saturation voltage (Vcesat), high current capacity, high input impedance due to voltage drive, and low gate charge. Suitable for HVAC and power management applications.
STMICROELECTRONICS STGW30NC120HD PowerMESH IGBT Specifications:
- Voltage: 1200V
- Continuous Collector Current: 30A
- Vcesat (at 25°C): <2.75V
- Vcesat (at 100°C): <2.75V
- Package: TO-247
- Mechanical Dimensions: Length 19.85-20.15 mm, Width 15.45-15.75 mm
- Gate Charge: Low
- High input impedance: Voltage driven
- Rated for high-frequency switching applications
- Operating temperature range: -55°C to +150°C
- Features low on-voltage drop, high current capability, and fast switching
- Application: induction heating, soft switching, power electronics
Buy the STMicroelectronics Series PowerMESH IGBT: STGW30NC120HD
Purchase the high-performance PowerMESH IGBT STGW30NC120HD online today to optimize your induction heating and soft switching systems. This high-voltage, high-current IGBT offers low losses, fast switching, and excellent thermal performance, making it perfect for demanding power management applications. Easy to integrate into your designs thanks to its compact TO-247 package and low gate charge, ensuring reliable operation and improved efficiency. Get this advanced device now to elevate your electrical projects with superior switching and minimal power dissipation.
Order your STMicroelectronics Series PowerMESH IGBT STGW30NC120HD today and enhance your power switching applications with high efficiency and reliability.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STGW30NC120HD?
You can click on the BUY or RFQ button to purchase STGW30NC120HD from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STGW30NC120HD?
You can download the STGW30NC120HD datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STGW30NC120HD?
STMICROELECTRONICS
