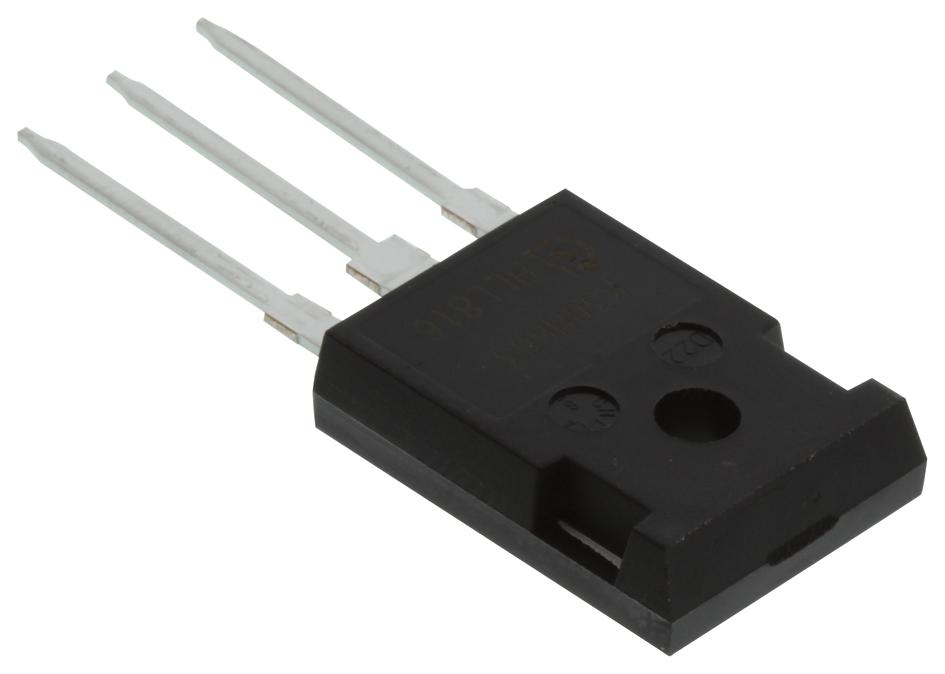

STMICROELECTRONICS STGWA20IH65DF Power Switch Module
The trench gate field-stop 650 V, 20 A IGBT in a TO-247 long leads package is designed for soft-commutation and high efficiency in resonant and switching applications like induction heating, resonant converters, and microwave ovens. It features an advanced proprietary trench gate structure, low storage and conduction losses, and a low drop forward voltage diode. With a maximum junction temperature of 175°C, it offers reliable performance suitable for demanding power switching environments. This product maximizes efficiency with tight parameter control and low thermal resistance, making it ideal for industrial power control systems.
STMICROELECTRONICS STGWA20IH65DF Power Switch Module Specifications:
- Collector-emitter voltage: 650 V
- Continuous collector current at 25°C: 40 A
- Continuous collector current at 100°C: 20 A
- Pulsed collector current: 60 A
- Gate-emitter voltage: ±20 V
- Transient gate-emitter voltage: ±30 V
- Power dissipation at 25°C: 159 W
- Operating junction temperature range: -55°C to 175°C
- Thermal resistance junction-case IGBT: 0.94 K/W
- Thermal resistance junction-case diode: 2.08 K/W
- Thermal resistance junction-ambient: 50 K/W
- Package: TO-247 long leads
- Maximum junction temperature: 175°C
Buy the STMicroelectronics STGWA20IH65DF – Reliable Power Switching for Industrial Applications
Purchase the STMicroelectronics STGWA20IH65DF online today to ensure your projects benefit from high-performance, durable, and efficient power switching capabilities. Suitable for induction heating, resonant converters, and microwave ovens, this robust IGBT module in a TO-247 long leads package offers excellent thermal management and reliable operation at high junction temperatures. With a maximum voltage of 650 V and current handling up to 20 A continuous, it guarantees optimal performance in demanding industrial environments. Secure your stock now and enhance your power systems with this top-tier component.
Buy STMicroelectronics STGWA20IH65DF now and experience unmatched reliability and high-efficiency soft-switching performance for your industrial power control needs.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STGWA20IH65DF?
You can click on the BUY or RFQ button to purchase STGWA20IH65DF from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STGWA20IH65DF?
You can download the STGWA20IH65DF datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STGWA20IH65DF?
STMICROELECTRONICS
