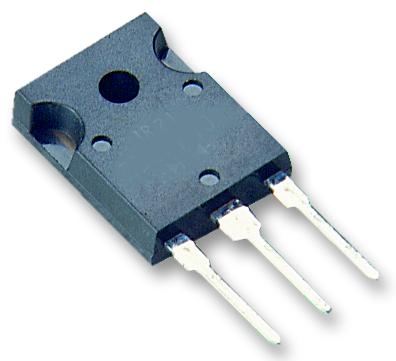

STMICROELECTRONICS STGWA8M120DF3 Power IGBT module
The STGWA8M120DF3 is a trench gate field-stop IGBT designed for high efficiency and low-loss operation in industrial drives, UPS, solar, and welding applications. Featuring a 1200 V voltage rating, 8 A continuous collector current, short-circuit withstand time of 10 μs, and soft recovery diode, it offers enhanced safety and thermal performance. Developed with advanced proprietary trench gate technology, it provides tight parameter distribution, safer paralleling, and low thermal resistance, making it suitable for demanding power conversion systems requiring reliable switching and high precision control.
STMICROELECTRONICS STGWA8M120DF3 Power IGBT module Specifications:
- Collector-emitter voltage: 1200 V
- Continuous collector current at Tc=25°C: 16 A
- Pulse collector current: 32 A
- Gate-emitter voltage: +20 V
- Forward current at Tc=25°C: 16 A
- Pulse forward current: 32 A
- Total dissipation at Tc=25°C: 167 W
- Storage temperature range: -55°C to 150°C
- Operating junction temperature range: -55°C to 175°C
- Thermal resistance junction-case IGBT: 0.9 °C/W
- Thermal resistance junction-ambient: 50 °C/W
- Collector-emitter breakdown voltage: 1200 V
- Max collector current: 16 A
- Switching turn-on delay: 20 ns
- Switching turn-off delay: 19 ns
- Short-circuit withstand time: 10 μs
- Reverse recovery time of diode: 103 ns
- Peak reverse recovery energy: 211 μJ
- Device package: TO-247 and long leads variants
- Designed for high efficiency, fast switching, and paralleling safety
