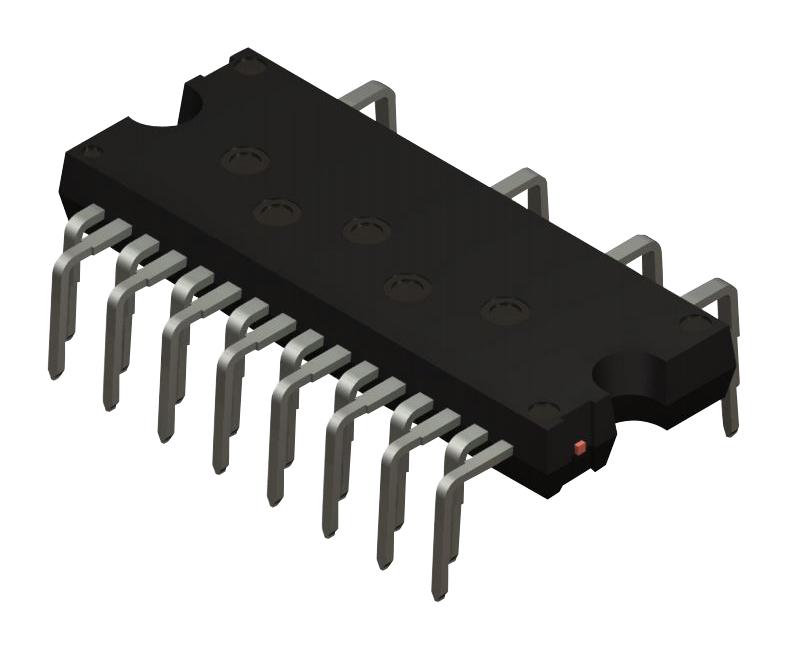

STMICROELECTRONICS STIPQ5M60THZ 3-Phase Motor Drive Module
This compact IPM module integrates six N-channel MDmesh DM2 Power MOSFETs and three half-bridge HVICs, optimized for low electromagnetic interference and thermal efficiency. It provides a robust solution for three-phase motor drives in appliances like dishwashers, refrigerators, and air-conditioning systems. The device features internal fault detection, shutdown functions, and easy-to-implement control circuitry. With high isolation ratings, UL recognition, and flexible application options, this IPM is ideal for low-power, space-constrained motor control applications requiring reliability and efficiency.
STMICROELECTRONICS STIPQ5M60THZ 3-Phase Motor Drive Module Specifications:
- Number of MOSFETs: 6 N-channel MDmesh DM2
- Voltage Rating: 600 V
- Continuous Drain Current: 5 A per MOSFET
- Peak Drain Current: 10 A per MOSFET (less than 1 ms)
- Power Dissipation: 128 W at Tc = 25°C
- Package Types: N2DIP-26L type L and Z
- Isolation Voltage: 1500 Vrms/min
- Control Supply Voltage: 3 V to 15 V
- Bootstrap Voltage: 21 V
- Operating Temperature Range: -40°C to 125°C
- Pickup of fault functions: Overtemperature, overcurrent
- Additional Features: Internal bootstrap diode, undervoltage lockout, fault protection comparators
- Dimensions: Refer to N2DIP-26L package outlines, typical height approx. 8-9 mm
- Certification: UL 1557, CE and RoHS compliant
- Designed for low electromagnetic interference and optimized thermal performance to ensure reliable operation in compact systems.
- Includes thermistor and fault detection circuitry for enhanced safety and fault management.
