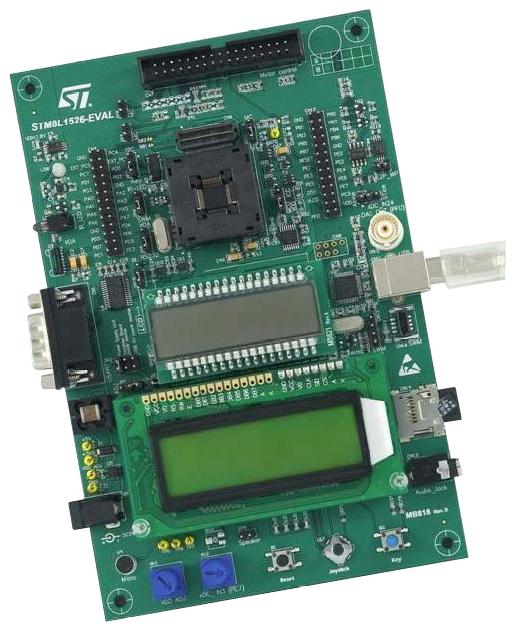

STMICROELECTRONICS STM8L1526EVAL Microcontroller Evaluation Board
The STM8L1526-EVAL evaluation board is a comprehensive development platform for STMicroelectronics' STM8L152C6 microcontroller, equipped with multiple hardware features. It supports three 5V power options including power jack, USB, or daughterboard, and facilitates audio input/output via DAC and ADC connected speakers and microphones. The board includes a microSD slot with over 1 Gbyte capacity, SPI serial Flash, I2C serial interface with EEPROM and temperature sensor, RS-232, IrDA transceiver, motor control connector, integrated ST-LINK debugger, 122x32 dot matrix LCD, joystick, control buttons, LEDs, and an extension connector for custom modules. Its flexible voltage range, display, and communication interfaces make it suitable for developing secure, medical, and consumer electronics applications.
STMICROELECTRONICS STM8L1526EVAL Microcontroller Evaluation Board Specifications:
- Power Supply Options: 5 V via power jack, USB, or daughterboard
- MicroSD Card Slot: Supports over 1 Gbyte via SPI interface
- Serial Flash Memory: 128 Mbit SPI Flash
- Serial Interface: I2C with 64 Kbit EEPROM and temperature sensor
- Display: 122x32 dot matrix LCD connected via SPI
- Communication: RS-232, IrDA transceiver
- Motor Control: Inductor motor control connector
- Debugging: Embedded ST-LINK SWIM support
- Display Segments: 28 x 4 segments LCD (7 digits, alpha-numeric)
- Input Devices: Joystick with four-directional control, reset, and user buttons
- LED Indicators: 4 color LEDs, 1 bi-color LED
- Power Range: 1.65 V to 3.6 V, configurable voltage
- Additional Features: Power measurement circuit, extension connector for daughterboard, suitable for security and industrial applications
Buy the STMicroelectronics Series Evaluation Board: STM8L1526-EVAL
Discover the STM8L1526-EVAL evaluation board from STMicroelectronics, a versatile development platform equipped with multiple interfaces including LCD, audio, SD card, and communication protocols. Designed for embedded application developers, it supports various power options, includes an integrated debugger, and features expansion capabilities through extension headers. Perfect for creating secure, medical, and consumer electronics products, this board simplifies complex project development while offering reliable performance and easy connectivity for custom modules and applications.
Buy STMicroelectronics STM8L1526-EVAL now and experience a versatile platform with extensive peripherals for embedded development.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM8L1526EVAL?
You can click on the BUY or RFQ button to purchase STM8L1526EVAL from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM8L1526EVAL?
You can download the STM8L1526EVAL datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM8L1526EVAL?
STMICROELECTRONICS
