STMICROELECTRONICS STOD32ATPQR Triple DC-DC Converter
The STOD32A is a versatile triple DC-DC converter designed for AMOLED display power supply in portable devices. It integrates step-up, inverting, and auxiliary converters with programmable output voltages, including a positive step-up of 4.6 V and a negative voltage range from -0.8 V to -4.8 V. Suitable for battery-operated systems, it offers high efficiency with soft-start, inrush current control, overtemperature shutdown, short-circuit protection, and true shutdown mode. Compact QFN16 package (3.0x3.0 mm) ensures space-saving design for cellular phones, multimedia players, and digital cameras.
STMICROELECTRONICS STOD32ATPQR Triple DC-DC Converter Specifications:
- Operating input voltage range from 2.5 V to 45 V
- Output current for step-up and inverting converters: 300 mA
- Output current for auxiliary step-up converter: 55 mA
- Positive step-up voltage: 4.6 V
- Programmable negative voltage from -0.8 V to -4.8 V, default -4.0 V
- Auxiliary converter positive voltage: 5.8 V to 7.9 V, default 7.6 V
- Features soft-start, overtemperature protection, true-shutdown, short-circuit protection
- Package: QFN16 (3.0x3.0 mm), 0.5 mm pitch
- Application: AMOLED display power, portable electronics, mobile devices
- Includes thermal shutdown, inrush current control, and programmable output voltages

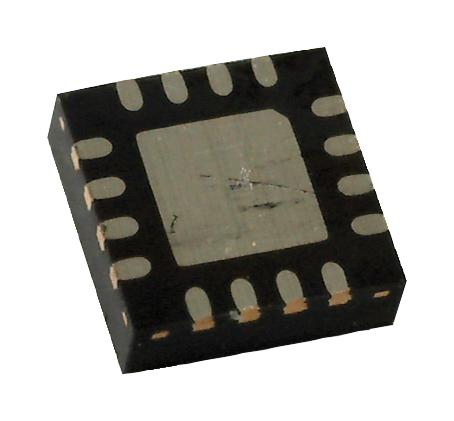

Buy the Buy STMicroelectronics STOD32A Part Number STOD32ATPQR Online
Purchase the STMicroelectronics STOD32A triple DC-DC converter online to power AMOLED displays in portable and mobile devices. This compact, efficient device integrates multiple converters with programmable output voltages, ensuring optimal power supply for battery-operated systems like smartphones, multimedia players, and digital cameras. Featuring soft-start, overtemperature shutdown, short-circuit protection, and true shutdown mode, it guarantees system reliability and safety. Its 3.0x3.0 mm QFN16 package makes it ideal for space-constrained applications, delivering high performance and versatility for modern electronics.
Order your STMicroelectronics STOD32A power management IC today and ensure your AMOLED display projects operate with reliable and efficient power regulation.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STOD32ATPQR?
You can click on the BUY or RFQ button to purchase STOD32ATPQR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STOD32ATPQR?
You can download the STOD32ATPQR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STOD32ATPQR?
STMICROELECTRONICS
