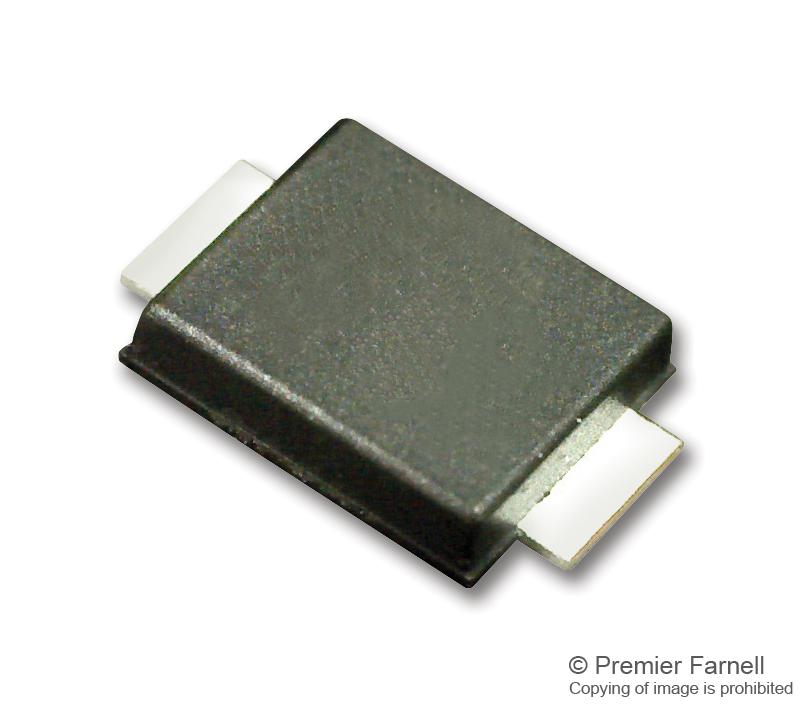

STMICROELECTRONICS STPS1170AF Power Rectifier
The STPS1170 is a high-efficiency 170 V Schottky rectifier designed for switch mode power supplies and high-frequency DC to DC converters. Packaged in SMAflat, it excels in low voltage, high-frequency inverters, polarity protection, and LED lighting applications. With a maximum junction temperature of 175°C, this avalanche-rated diode features negligible switching losses, small conduction losses, low leakage current, and high junction temperature capability. Its robust design ensures reliable performance in space-constrained, energy-efficient electronic circuits, making it ideal for modern power management systems.
STMICROELECTRONICS STPS1170AF Power Rectifier Specifications:
- Repetitive peak reverse voltage: 170 V
- Repetitive peak reverse voltage at -40°C: 160 V
- Forward rms current: 15 A
- Average forward current at 0.5 duty cycle: 1 A
- Surge non-repetitive forward current: 45 A
- Repetitive peak avalanche power: 110 W
- Storage temperature range: -65°C to +175°C
- Operating junction temperature: -40°C to +175°C
- Junction to lead thermal resistance: 20°C/W
- Forward voltage drop at 25°C, 2A: 0.89 V
- Reverse leakage current at 125°C: 0.25–1.5 mA
- Package: SMAflat with UL94 V-0 compliant epoxy, lead-free
- Dimensions (A, B, C, D, E, E1, L, u, Le): in millimeters (A: 0.90–1.10, B: 1.25–1.65, C: 0.15–0.40, D: 2.25–2.95, E: 4.80–5.60, E1: 3.95–4.60, L: 0.75–1.50, u: 0.50, Le: 0.50), standard solder pad footprint for SMAflat package
