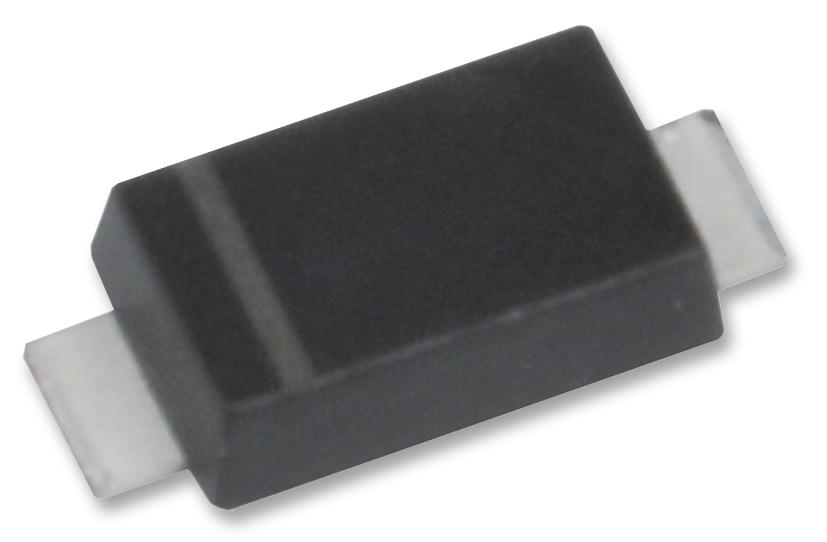

STMICROELECTRONICS STPS3H100UFY Schottky Rectifier
The STPS3H100-Y is a high-performance automotive Schottky rectifier in SMBFlat package designed for high frequency switched mode power supplies, such as adaptors and onboard DC to DC converters. It features a maximum forward voltage drop of 0.63 V at 3 A, a repetitive peak reverse voltage of 100 V, and a maximum junction temperature of 175°C. This device offers excellent efficiency with negligible switching losses, high junction temperature capability, low leakage current, and avalanche specifications, making it suitable for automotive and industrial power applications with quality qualification under AEC-Q101.
STMICROELECTRONICS STPS3H100UFY Schottky Rectifier Specifications:
- Maximum repetitive peak reverse voltage: 100 V
- Maximum average forward current: 3 A at TL=125°C
- Maximum junction temperature: 175°C
- Forward voltage drop: 0.63 V at 3 A
- Repetitive peak avalanche power: 170 W
- Storage temperature range: -65°C to +175°C
- Thermal resistance junction to lead: 15 °C/W typical, 20 °C/W max
- Peak reverse voltage: 100 V
- Surge non-repetitive forward current: 26.4 A
- Device package: SMBFlat, epoxy meets UL94VO
- Lead-free and environmentally compliant ECOPACK® package
- Mechanical dimensions: A 0.90–1.10 mm, B 1.95–2.20 mm, C 0.15–0.40 mm, D 3.30–3.95 mm, E 5.10–5.60 mm, L 0.75–1.50 mm
Buy the STMicroelectronics STPS3H100UFY – Reliable Schottky Rectifier for Industrial Applications
Purchase the STPS3H100UFY Schottky rectifier online today and ensure your power systems are efficient, reliable, and ready for demanding automotive and industrial applications. With low forward voltage, high current capacity, and exceptional thermal performance, this device guarantees high efficiency and safety standards. Order now and benefit from quick delivery, quality assurance, and technical support to optimize your power conversion designs with this advanced power component.
Buy STMicroelectronics STPS3H100UFY now and experience unmatched reliability and performance in your power supply designs.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPS3H100UFY?
You can click on the BUY or RFQ button to purchase STPS3H100UFY from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPS3H100UFY?
You can download the STPS3H100UFY datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPS3H100UFY?
STMICROELECTRONICS
