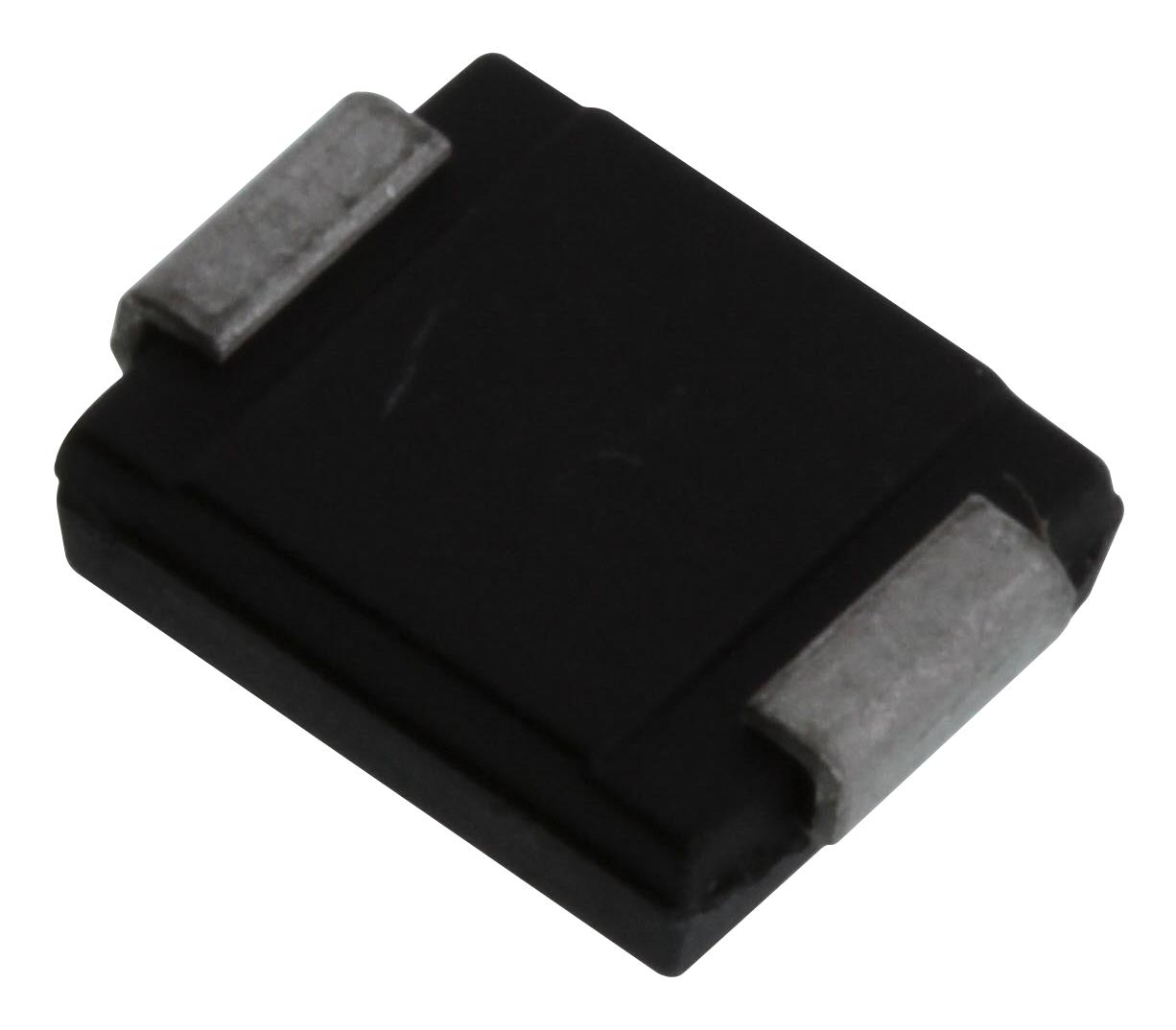

STMICROELECTRONICS STPS4S200S Schottky Rectifier
This device is a 200 V Schottky rectifier designed for switch mode power supplies and high-frequency DC to DC converters. Packaged in DPAK, SMC, and SMBflat, it is ideal for low-voltage, high-frequency inverters, freewheeling, and polarity protection. It features negligible switching and conduction losses, low leakage current, and high junction temperature capability, making it suitable for LED lighting and other power management applications. The rectifier offers a maximum forward voltage of 0.64 V at 4 A and supports surge currents up to 130 A, ensuring reliable performance in demanding environments.
STMICROELECTRONICS STPS4S200S Schottky Rectifier Specifications:
- Repetitive peak reverse voltage: 200 V
- Forward rms current: 10 A (T=160°C)
- Forward voltage drop: 0.64 V at 4 A (typ.)
- Surge non-repetitive forward current: 130 A (tp=10 ms)
- Maximum junction temperature: 175°C
- Storage temperature range: -65°C to +175°C
- Thermal resistance junction to case (DPAK): 3.2°C/W
- Reverse leakage current: 0.7 mA at 25°C
- Cable of low leakage and conduction losses, high-temperature operation
- Package options: DPAK, SMC, SMBflat, compliant with ECOPACK® and ECOPACK®2
Buy the STMicroelectronics STPS4S200 – Reliable Schottky Rectifier for Industrial Applications
Order the reliable Schottky Rectifier designed for high-frequency power supplies and LED lighting applications. Featuring low conduction and switching losses, high junction temperature tolerance, and multiple package options including DPAK, SMBflat, and SMC, this device ensures efficient energy management. With a maximum reverse voltage of 200 V, forward current of 4 A, and surge capabilities up to 130 A, it is essential for demanding power conversion, inverters, and protection circuits. Purchase online today for fast delivery and optimal performance performance in your power systems.
Buy STMicroelectronics STPS4S200 now and experience unmatched reliability and performance in power supply and LED lighting solutions.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPS4S200S?
You can click on the BUY or RFQ button to purchase STPS4S200S from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPS4S200S?
You can download the STPS4S200S datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPS4S200S?
STMICROELECTRONICS
