STMICROELECTRONICS STPSC10065DLF High-Voltage SiC Diode
The STPSC10065DLF is a high-performance, 650 V, 10 A power Schottky silicon carbide diode designed for energy-efficient applications such as boost PFC, high-frequency inverters, and renewable energy systems. Manufactured on a silicon carbide substrate, it features negligible reverse recovery, very low forward voltage drop, and high surge current capability for reliable power switching. Packaged in a compact PowerFLAT™ 8x8 HV package, this diode offers excellent thermal and electrical characteristics, making it suitable for industrial, telecom, and network environments requiring efficient, high-speed power management solutions.
STMICROELECTRONICS STPSC10065DLF High-Voltage SiC Diode Specifications:
- Voltage Rating: 650 V
- Forward Voltage: approximately 1.30 V at 10 A, typical 1.45 V at 150°C
- Maximum Forward Surge Current: 210 A for 10 ms waveform
- Repetitive Peak Forward Current: 44 A at 25°C, 39 A at 125°C
- Leakage Current: 1.30 µA at 150°C under 650 V reverse voltage
- Operating Junction Temperature Range: -40°C to 175°C
- Storage Temperature Range: -55°C to 175°C
- Thermal Resistance Junction to Case: data not specified explicitly
- Capacitance (Total): 55 pF at 400 V, 1 MHz
- Package: PowerFLAT™ 8x8 HV, epoxy UL94V-0, lead-free
- Peak Repetitive Forward Current Density: Surge capability up to 44 A
- Designed for high efficiency and fast switching applications

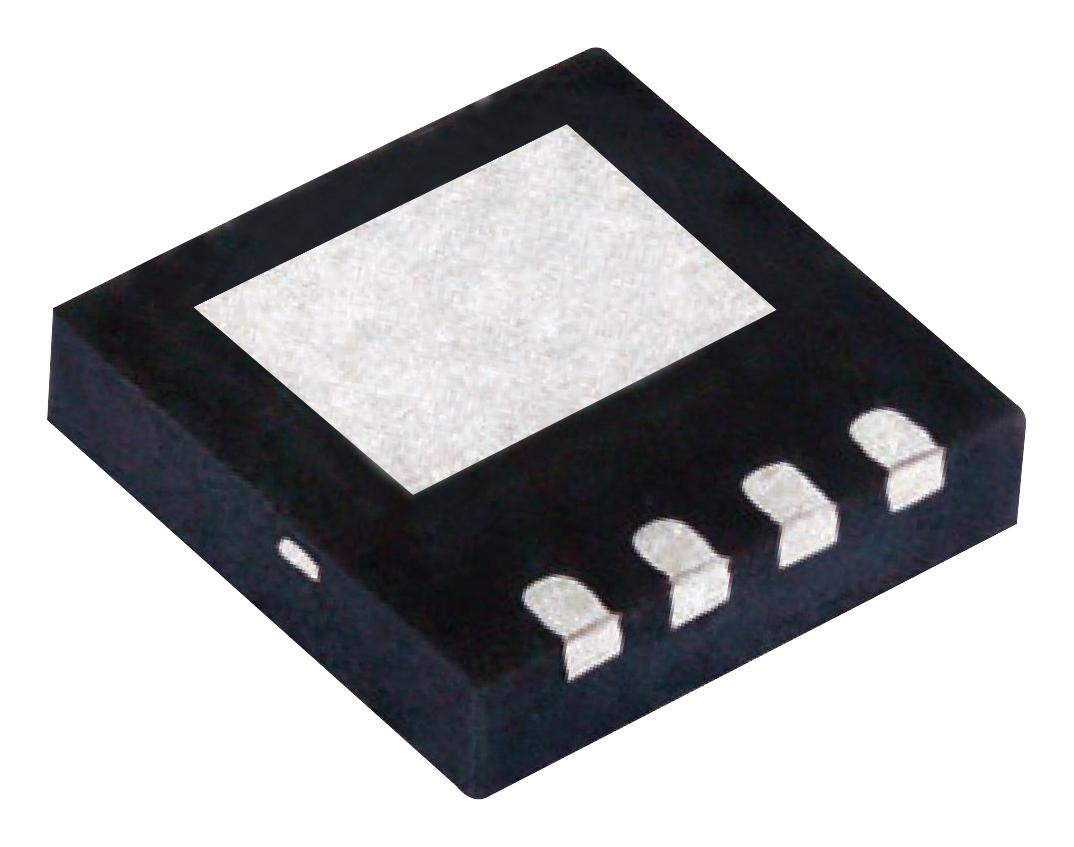

Buy the Buy STMicroelectronics STPSC10065DLF Part Number in PowerFLAT 8x8 HV Online
Purchase the STPSC10065DLF PowerFLAT 8x8 HV Silicon Carbide Diode online now to optimize your power systems with high efficiency, low forward voltage, and excellent surge current capability. This 650 V, 10 A diode is ideal for telecom, industrial, renewable energy, and high-frequency inverter applications. Its compact package ensures reliable thermal performance and space savings, making it suitable for demanding environments. Order today and improve your power management with this advanced SiC diode known for its durability and rapid switching features.
Order your STMicroelectronics STPSC10065DLF in PowerFLAT 8x8 HV package today and enhance your high-voltage power switching solutions with reliable, energy-efficient diodes.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPSC10065DLF?
You can click on the BUY or RFQ button to purchase STPSC10065DLF from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPSC10065DLF?
You can download the STPSC10065DLF datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPSC10065DLF?
STMICROELECTRONICS
