STMICROELECTRONICS STTH60RQ06M2Y Ultrafast Bridge Rectifier
The ultrafast bridge rectifier is designed for high-performance automotive and industrial applications, offering exceptional thermal capability and insulation via a ceramic base. It features a high junction temperature range from -40°C to +175°C, with a 600V repetitive peak reverse voltage and a 60A load current, making it ideal for output rectification in DC/DC converters, onboard chargers, and charging stations. The module integrates direct bond copper chips on an insulated ceramic substrate, ensuring low thermal resistance, microsecond reverse recovery times, and ultrafast switching characteristics for reliable, efficient operation.
STMICROELECTRONICS STTH60RQ06M2Y Ultrafast Bridge Rectifier Specifications:
- Repetitive peak reverse voltage: 600 V
- Average forward current: 30 A (per diode) at 77°C
- Surge non-repetitive forward current: 180 A (10 ms)
- Operating junction temperature: -40°C to +175°C
- Thermal resistance junction to case: 1.03-1.25°C/W
- Reverse leakage current: 2.45 μA at 25°C, 800 μA at 150°C
- Forward voltage drop: 2.95 V at 25°C, 1.85 V at 150°C
- Reverse recovery time: 40 ns
- Reverse recovery charge: 485 nc
- Insulation voltage (UL 1557): 4000 V
- Backside in insulated ceramic, direct bond copper chips, ECOPACK2 compliant
- Package weight: 8.1 grams
- Creepage distance: 40 mm
- Operating temperature: -40°C to +175°C
- Module dimensions: approximately 19.50 mm x 21.50 mm x 22.80 mm

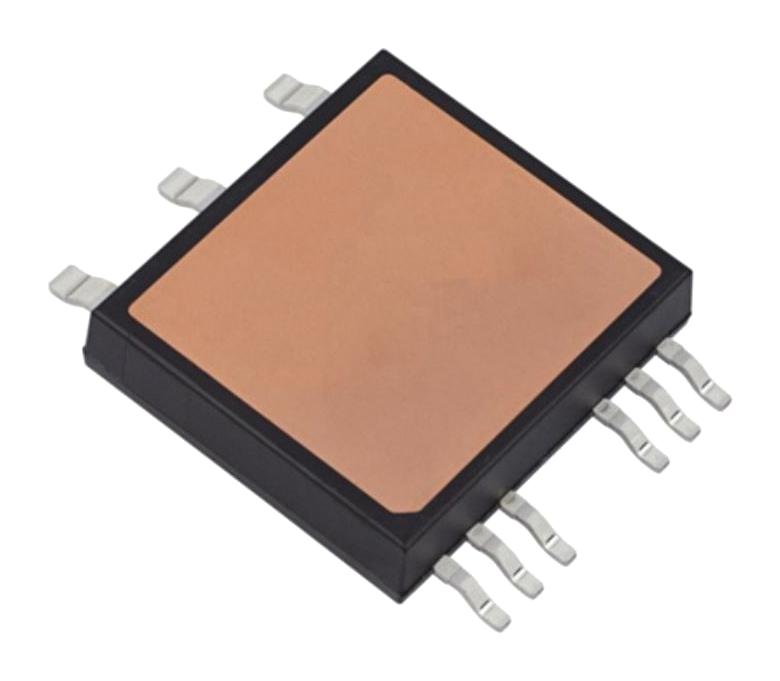

Buy the STMicroelectronics Series ACEPACK SMIT Bridge Rectifier: STTH60RQ06-M2Y
Purchase the STMicroelectronics STTH60RQ06-M2Y ultrafast bridge rectifier online today for high thermal efficiency, robust insulation, and fast switching performance. This module is ideal for automotive and industrial applications like output rectification, onboard chargers, and charging stations. Featuring a 600V peak reverse voltage, 60A load current capacity, and ceramic insulation, it ensures reliable operation in high-temperature environments. Its design offers low thermal resistance, quick recovery times, and compliance with environmental standards, guaranteeing durability, efficiency, and enhanced power density for demanding power conversion tasks.
Get STMicroelectronics STTH60RQ06-M2Y today—built for automotive high-speed rectification and long-lasting, reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STTH60RQ06M2Y?
You can click on the BUY or RFQ button to purchase STTH60RQ06M2Y from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STTH60RQ06M2Y?
You can download the STTH60RQ06M2Y datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STTH60RQ06M2Y?
STMICROELECTRONICS
