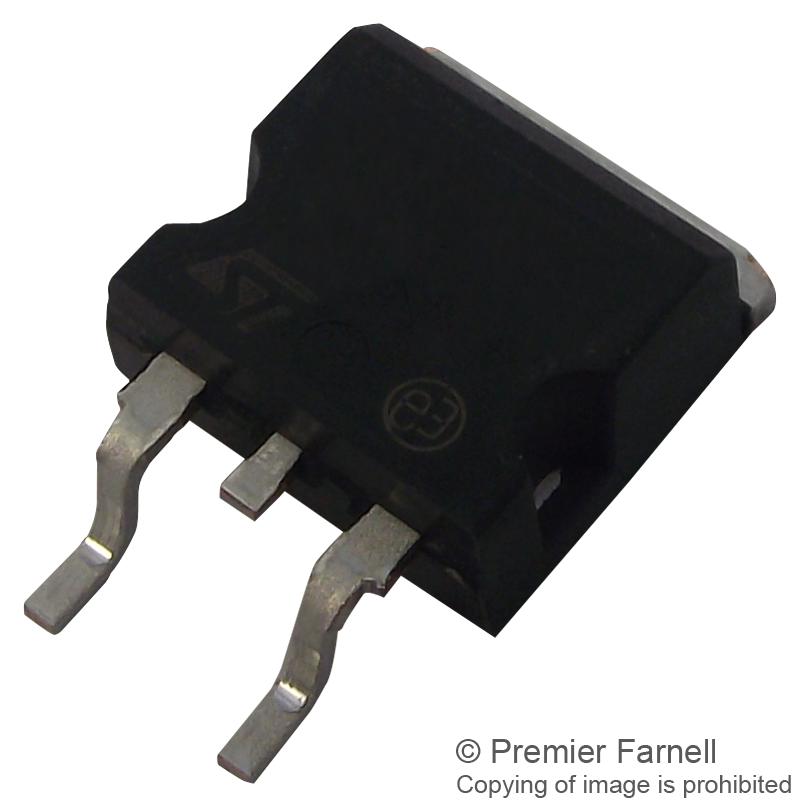

STMICROELECTRONICS T810600GTR Triac Switch
The T810 series are 8A triacs designed for general purpose AC switching, including phase control in light dimmers and motor speed controllers. Available in through-hole and surface-mount packages, these triaсs feature high commutation performance for inductive loads, logic level versions for low power interface, and high voltage insulations compliant with UL standards. They can handle a repetitive peak off-state voltage of 600V to 800V, with trigger gate currents from 5 to 50 mA, making them suitable for various industrial and consumer electronic switching applications with high reliability.
STMICROELECTRONICS T810600GTR Triac Switch Specifications:
- On-state rms current: 8 A
- Repetitive peak off-state voltage: 600 V to 800 V
- Trigger gate current: 5 to 50 mA
- Peak gate current: 4 A
- Storage temperature range: -40°C to +150°C
- Operating junction temperature: -40°C to +125°C
- Electrical resistances: Max. 1.55 V at 11 A, Max. 0.85 V threshold
- Thermal resistance: Junction to case 1.6°C/W, junction to ambient 60-100°C/W depending on package
- Package options include TO-220AB, DPAK, IPAK, with specific mechanical dimensions
- High insulation voltage rated at 2500 Vrms via internal ceramic pad
- Designed for phase control, static relays, heating regulation, induction motor start circuits
- Available snubberless versions for inductive load switching, compatible with low power drivers
Buy the Buy STMicroelectronics BTA08 Part Number T810600GTR Online
Secure your STMicroelectronics Series T810600GTR triac now from authorized online distributors. These reliable high-current triacs are ideal for phase control, inductive load switching, and AC power regulation. Suitable for low power microcontroller interfacing, they feature high voltage insulation, multiple package choices, and excellent commutation for inductive loads. With a maximum repetitive peak off-state voltage of 600V to 800V and high current capability, these triacs ensure long-lasting, dependable performance in all your switching applications. Purchase online today for fast delivery and peace of mind.
Order your STMicroelectronics Series T810600GTR triac today and ensure reliable AC switching in your industrial and consumer projects.
