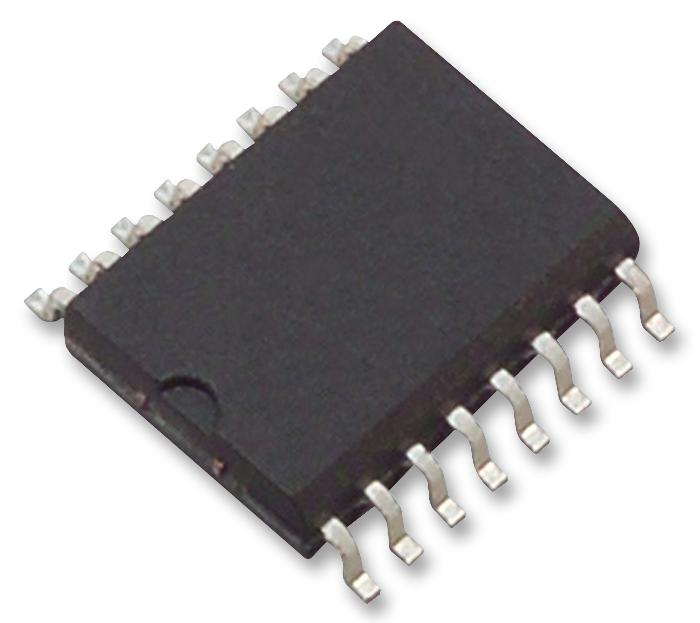

STMICROELECTRONICS TD310ID Power Driver
The TD310 is a versatile triple IGBT/MOS driver designed for low side or half-bridge configurations, capable of driving up to three power transistors with pulse transformer support. It features a current sense comparator for overcurrent protection, an uncommitted op-amp for current measurement, and programmable undervoltage lockout with standby mode for enhanced safety and efficiency. Suitable for three-phase systems, pulse transformer drive, and general-purpose pulse applications, this driver ensures reliable operation in motor control and power switching environments. Its flexible design supports high voltage and temperature ranges typical of industrial power electronics.
STMICROELECTRONICS TD310ID Power Driver Specifications:
- Supply Voltage: 4 to 16 V
- Maximum Supply Voltage: 18 V
- Operating Junction Temperature: -40°C to 150°C
- Ambient Temperature: -40°C to 125°C
- Output Peak Current per Channel: Ml 0.6 A
- Output Impedance Typical: 7Ω at 200mA
- Input Voltage Range: 0 to 18 V
- Sense Input Voltage: -0.3 to 18 V
- Propagation Delay: 200 to 400 ns
- Output Drop Voltage: Sourcing 3 V, Sinking 5 V
- Alarm Output Current: 5 to 35 mA
- Standby Mode Voltage: 0.3 V at 1A
- Undervoltage Lockout Threshold: 10.7 to 13.3 V
- Hysteresis: 0.8 V
- Package Types: DIP-16, SO-16
- Power Dissipation: Max. 150°C junction temperature
- Isolation: Not specified
- Resistances: Pull-down resistor 47 kΩ
- Additional features include hysteresis, programmable UVLO, and low standby current.
- Designed for industrial motor drives, pulse transformers, and power switching in automation systems.
Buy the STMicroelectronics Series TD310 Power Driver: TD310ID
Experience reliable power control with the STMicroelectronics TD310ID, a triple IGBT/MOS driver perfect for low side and half-bridge configurations. Its overcurrent protection, adjustable undervoltage lockout, standby mode, and current sensing features ensure safe and efficient operation. Designed for industrial motor systems, pulse transformers, and power switching, it provides versatile performance across various applications. Order online now to enhance your project with a durable and precision-engineered power driver tailored for demanding environments.
Get STMicroelectronics TD310ID today—built for precision and long-lasting durability in power electronics and motor control applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TD310ID?
You can click on the BUY or RFQ button to purchase TD310ID from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TD310ID?
You can download the TD310ID datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TD310ID?
STMICROELECTRONICS
