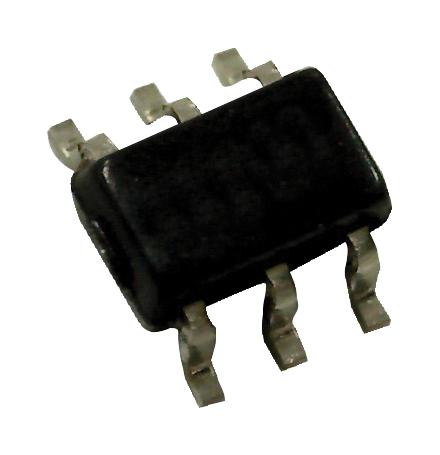

STMICROELECTRONICS USBUF01W6 EMI Filter USB Line Termination
The USBUFxxW6 is a compact EMI filter and line termination device designed for USB upstream ports on hubs and peripherals. It integrates recommended line termination, low-pass filtering to suppress EMI/RFI, and exceeds IEC 61000-4-2 level 4 ESD protection. Packaged in a small SOT323-6L package, it ensures high density board design flexibility, minimal radiated EMI, and effective electrostatic surge suppression, aligning with USB 1.1 standards to maintain signal integrity and EMC compliance in noisy environments.
STMICROELECTRONICS USBUF01W6 EMI Filter USB Line Termination Specifications:
- Package: SOT323-6L, dimensions: Length 1.8-2.2 mm, Width 1.15-1.35 mm, Height 0.8-1.1 mm
- Lead Plating: Tin-lead, 5 μm min. thickness, Sn/Pb alloy (70%-90% Sn)
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- Operating Temperature Range: -40°C to 70°C
- Lead Solder Temperature: 260°C (10 sec)
- Power Rating per Resistor: 100 mW
- ESD Protection: IEC 61000-4-2, +16 kV air discharge, +9 kV contact discharge, MIL STD 883E - Method 3015-7, +25 kV
- Line Termination: Rt series with 1.5 kΩ, 220 Ω; Ct bypassing capacitors: 47 pF
- Filter: Low pass filter with cutoff frequency and insertion loss parameters, rejecting high frequency EMI
- Package Weight: 5.4 mg, quantity: 3000 units per reel
Buy the STMicroelectronics USBUF01W6 – Reliable EMI Filter for Industrial Applications
Purchase the STMicroelectronics USBUF01W6 online today to ensure optimal EMI suppression and ESD protection for your USB connectivity needs. Its compact SOT323-6L package offers high-density design flexibility and reliable performance, exceeding industry standards for electromagnetic compatibility and electrostatic discharge resistance. Ideal for integrating into USB hubs, peripherals, and high-speed board layouts, this device helps maintain signal integrity, reduce noise, and meet stringent EMC requirements in noisy electronic environments. Order now for fast delivery and dependable operation.
Order your STMicroelectronics USBUF01W6 today and enhance your USB port EMI suppression with high-performance ESD protection and compact design.
