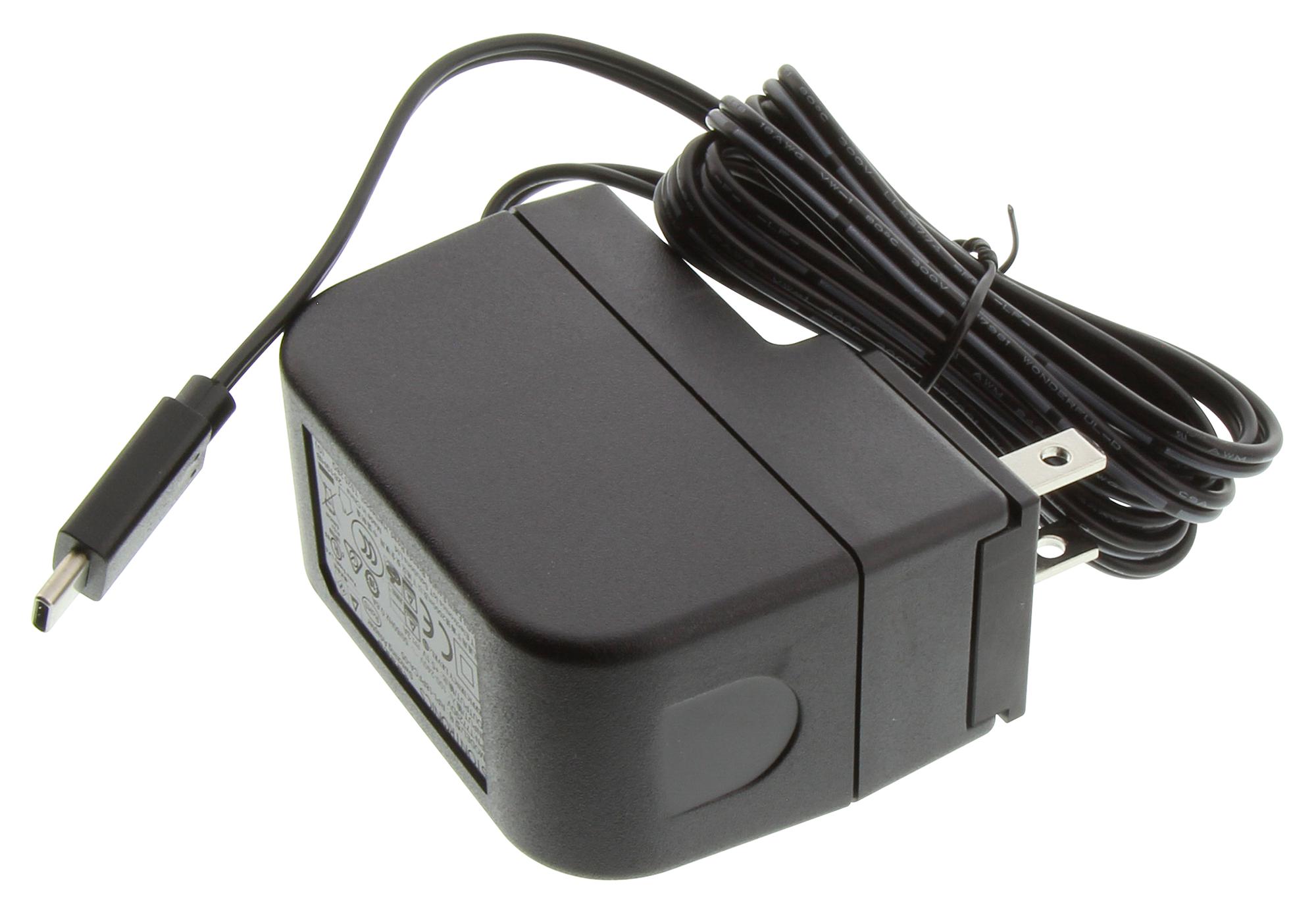

STONTRONICS T7729DV Power Supply Module
The Stontronics 5.1V DC power supply provides 3A output current with a maximum power of 15.3W, designed for versatile general power applications including Raspberry Pi devices. It features a compact, fixed wall plug enclosure with a USB Type-C connector for reversible plugging. Supporting input voltages from 90V to 264V and operating at Level VI efficiency, it ensures energy conservation and reliability. This power supply is CE approved, includes overvoltage and overcurrent protections, and complies with international safety standards, making it suitable for various electronics and industrial uses. The rugged design supports operation in temperatures from 0°C to +40°C with stable regulation and noise levels, making it an excellent choice for safe, efficient power delivery in numerous environments.
STONTRONICS T7729DV Power Supply Module Specifications:
- Input Voltage Range: 90-264Vac
- Input Frequency Range: 47-63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: +5.1V
- Output Current Range: 3A
- Output Min Current: 0A
- Output Connector: USB Type C
- Total Output Regulation: +/-5%
- Line and Load Regulation: +/-2%
- Ripple & Noise: 240mVp-p
- Efficiency: 81.97% Min
- Over Voltage Protection: 10VDC maximum
- Over Current Protection: 5A maximum with auto-recovery
- Short Circuit Protection: Yes, designed to prevent damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Size: Max 74.5mm x 36mm x 54mm
- Weight: 115g ±15%
- Safety Standard: UL/CUL UL 62368-1
- EMI Standard: FCC Part 15 Class B, CE EN55032
- Hi-Pot Test: 3000Vac 10mA 1min
- MTBF: SOK Hours (not specified detailed)
Buy the USA 2-PIN PLUG-IN – Reliable Power Supply for Industrial Applications
Discover the highly reliable 5.1V power supply with USB Type-C connector, supporting 3A current for versatile industrial, electronics, or Raspberry Pi applications. Compact and efficient, it features Level VI energy efficiency, international safety compliance, and protections against overvoltage and overcurrent. Ideal for professionals needing a stable power source in various temperature and humidity conditions. Secure your equipment with this UL and CE-approved power adapter, ensuring safety, durability, and consistent performance in demanding environments. Shop online today for fast delivery!
Buy USA 2-PIN PLUG-IN power supply now and experience unmatched reliability and performance for your industrial and electronic projects.
