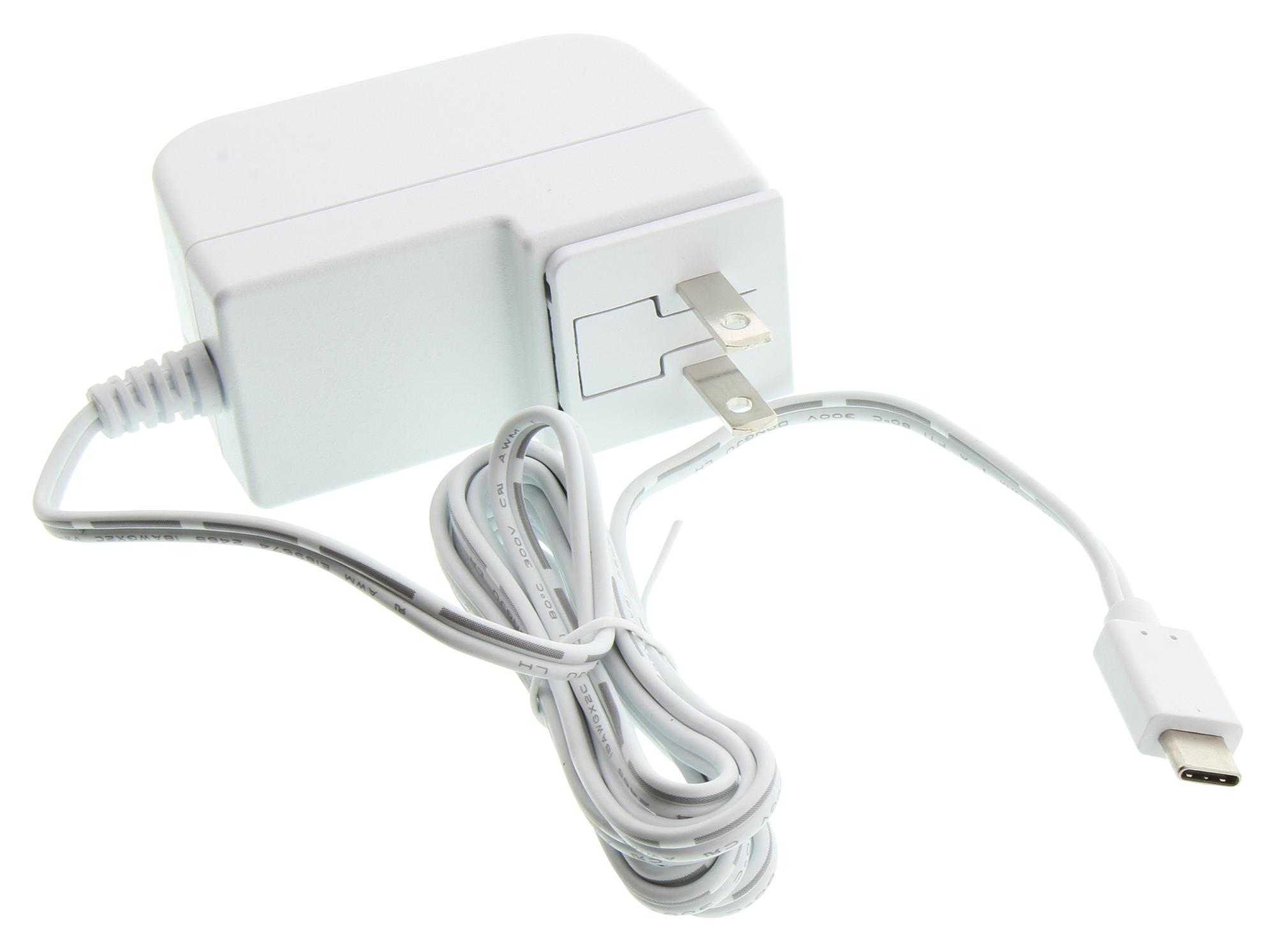

STONTRONICS T7731DV Power Supply
The Stontronics 5.1V DC, 3A power supply provides 15.3W of continuous power with a USB Type-C connector, US plug head, and supports input voltages from 90V to 264V. Designed for versatile general power applications, it complies with Level VI efficiency standards and safety certifications like UL and CE. The compact switch-mode power supply features over-current, over-voltage, and short circuit protection, operates within 0°C to 40°C, and has a size of approximately 74.5mm x 36mm x 54mm. It offers high reliability for various electronic devices requiring reliable energy delivery.
STONTRONICS T7731DV Power Supply Specifications:
- Input Voltage Range: 90-264Vac
- Input Frequency Range: 47-63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: +5.1V
- Output Current Range: 3A
- Output Min Current: 0A
- Output Connector: USB Type C
- Total Output Regulation: +/-5%
- Line and Load Regulation: +/-2%
- Ripple & Noise: 240mVp-p
- Efficiency: 81.97% Min
- Over Voltage Protection: 10VDC max
- Over Current Protection: 5A max with auto-recovery
- Short Circuit Protection: Protected from damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Size: 74.5mm x 36mm x 54mm
- Weight: 115g + 15%, US PIN: 7.5g + 1g
- Certification: UL/CUL, FCC, CE
- Safety Standard: UL 62368-1
- Hi-Pot Test: 3000Vac 10mA 1min
Buy the Electronics Series Power Supply: T7731DV
Purchase the Electronics T7731DV power supply online today to ensure your electronic devices receive stable, efficient power with advanced protection features. This compact, Level VI efficiency-rated power adapter offers 15.3 watts of reliable output, a USB Type-C connector, and comprehensive safety certifications including UL and CE. Designed for versatility, it supports input voltages from 90V to 264V, operates within 0°C to 40°C, and includes features like over-current, over-voltage, and short circuit protection. Secure your device's power needs by ordering now and benefit from quick delivery and trusted quality.
Buy Electronics T7731DV now and experience unmatched reliability and performance with efficient power delivery for your electronic devices.
