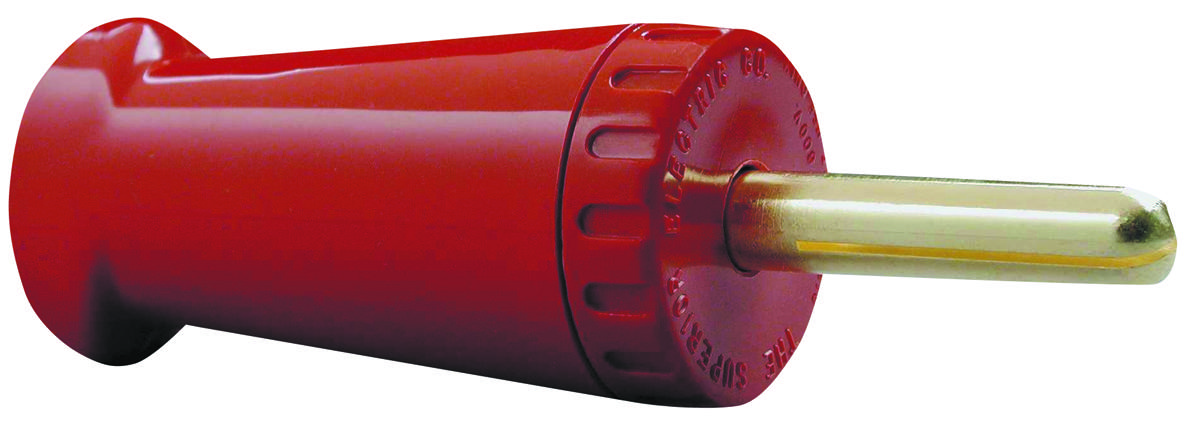

SUPERIOR ELECTRIC PP50GR Electrical Test Plug
The PP50GR is a 50A red pin-type test plug featuring gold-plated brass contacts and nylon 6 insulation. Designed for safe and reliable panel board connections, it has a uniquely designed grip for easy handling and rapid assembly. The plug allows both soldered and solderless wiring connections, with cable fastening screws to accommodate various cable sizes ranging from 10 to 6 AWG. Its simple, two-piece threaded grip construction enables quick assembly, making it suitable for test and measurement, industrial, and power management applications. The insulation parts are made of nylon with a UL94V-2 flammability rating.
SUPERIOR ELECTRIC PP50GR Electrical Test Plug Specifications:
- Current Rating: 50 Amperes
- Voltage: 125-250 VAC/DC
- Contacts: Gold-plated brass
- Insulation: Nylon 6, UL94V-2 flammability rating
- Cable Size Range: 10 to 6 AWG
- Construction: Two-piece threaded grip for quick assembly
- Design: Solder and solderless connection compatibility
- Application: Panelboard, power management, test equipment
- Rated Voltage: 600 V unenergized disconnect use only
- Flammability Rating: UL94V-2
Buy the Buy Superior Electronics PP50GR Test Plug Part Number PP50GR Online
Purchase the Superior Electronics PP50GR test plug online for reliable, safe, and efficient testing and power connection in industrial applications. Featuring gold-plated brass contacts, nylon insulation, and a quick assembly threaded grip, this 50A plug allows soldered or solderless wiring with cable sizes from 10 to 6 AWG. Its robust construction offers durability, and UL certification ensures compliance with safety standards. Ideal for panelboard, measurement, and power management tasks, ensuring fast and secure connections with ease of installation.
Get Superior Electronics PP50GR today—built for precision, safety, and long-lasting durability in power and industrial testing.
Frequently Asked Questions
Where can I buy SUPERIOR ELECTRIC PP50GR?
You can click on the BUY or RFQ button to purchase PP50GR from an authorized SUPERIOR ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part PP50GR?
You can download the PP50GR datasheet or visit the SUPERIOR ELECTRIC website for support.
Who is the manufacturer of PP50GR?
SUPERIOR ELECTRIC
