SUPERIOR ELECTRIC RP250GB Pin Receptacle

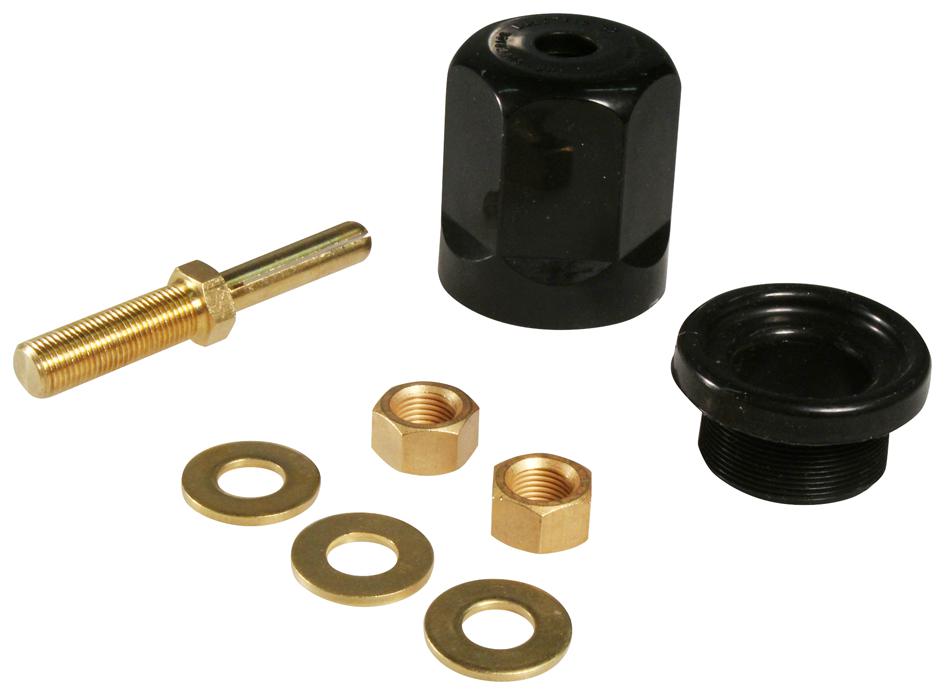

The RP250 series Pin Receptacle features color-matched nylon caps and bodies, with all plastic parts molded in the same color to facilitate quick and accurate circuit identification on both the front and back of the panel. It is designed to connect wiring via a threaded stud using methods such as wire wraparound, lug, or bus bar connection. This single conductor pin-type receptacle offers a 250A capacity and is suitable for industrial applications. The assembly process is simplified for quick installation.
SUPERIOR ELECTRIC RP250GB Pin Receptacle Specifications:
- Current Capacity: 250 Amperes
- Rated Voltage: 600 V (Unenergized disconnect use)
- Material: Nylon plastic molded parts in matching colors
- Connection Method: Threaded stud, wire wraparound, lug, or bus bar
- Color Options: Red, white, blue, yellow, black, green
- UL Recognized Components
- Panel Mounting Holes: 6.42 mm (0.25 inch) diameter
- Construction: Single conductor socket and pin type
- Simplicity in assembly for quick and safe installation
- Environmental Rating: Suitable for industrial environments
Buy the Superior 250GB – Reliable Electrical Connectors for Industrial Applications
Enhance your electrical panel setups with the superior quality RP250 series Pin Receptacle, featuring color-coded nylon parts for quick identification, rated at 250 amperes for heavy-duty industrial use. Its design allows for easy, solderless wiring connections using threaded studs, wire wraparound, or lug options. Recognized by UL for safety and reliability, this receptacle simplifies installation and maintenance in demanding environments. Order online now to ensure prompt delivery of this essential component for your power distribution needs.
Get Superior Electric RP250GB today—built for precision and long-lasting durability in industrial wiring connections.
