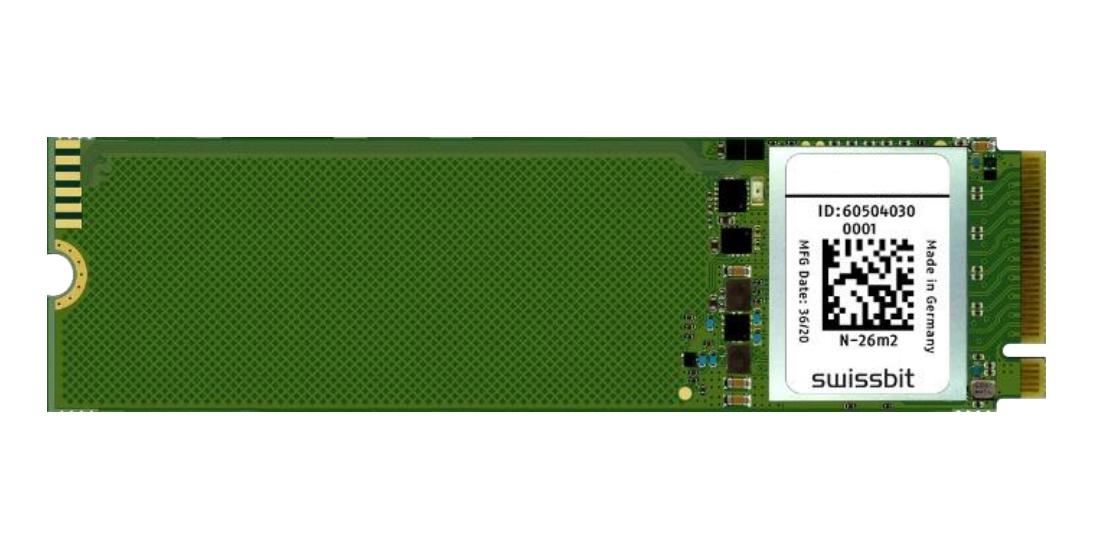

SWISSBIT SFPC005GM1EC1TOI5E51PSTD Industrial NVMe SSD

The Swissbit N-26m2 SSD is a high-performance industrial M.2 NVMe drive supporting capacities from 5GB to 160GB. It features PCIe Gen3 x2/x4 interface, robust 3D NAND TLC flash with LDPC ECC, and advanced data protection including AES256 encryption and E2E protection. Designed for industrial environments, it operates from -40°C to 85°C, with high endurance, low power consumption, and reliable error correction. Suitable for embedded systems requiring fast data transfer, durability, and secure storage, the SSD supports NVMe 1.3, SMART monitoring, and in-field firmware updates for optimal lifespan and performance.

Swissbit SFPC005GM1EC1TOI5E51PSTD – Reliable NVMe for Industrial Applications
View SFPC005GM1EC1TOI5E51PSTDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFPC005GM1EC1TO-I-5E-51P-STD
Stock:9
Inv Date:06-15-2026
Price: Unit price: $342.27
Buy/RFQ:
Source:Mouser Electronics
Part No:SFPC005GM1EC1TO-I-5E-51P-STD
Stock:7
Inv Date:06-16-2026
Price: Unit price: $324.6
Buy/RFQ:

SWISSBIT SFPC005GM1EC1TOI5E51PSTD Industrial NVMe SSD Specifications:

  • Capacities: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
  • Form Factor: M.2 (2230/2242/2280), 30/42/80 mm x 22 mm x 2.63 mm
  • Interface: PCIe Gen3 x2, x4 modes supported, supports NVMe 1.3
  • Sequential Read: up to 1,773 MB/s, Random Read 4K: up to 140,000 IOPS
  • Sequential Write: up to 827 MB/s, Random Write 4K: up to 131,000 IOPS
  • Operating Temperature: -40°C to 85°C, Storage Temperature: -40°C to 85°C
  • Voltage: 3.3V (±45%), 1.8V, 0.9V support
  • Power States: PS0-PS3, Thermal throttling supported
  • Endurance: Up to 1550 TBW for 80GB capacity, mean time MTBF > 2,000,000 hours
  • Dimensions: Length: 30/42/80 mm, Width: 22 mm, Max Thickness: 2.63 mm
  • Compliance: PCIe Rev 3.1, RoHS, REACH, WEEE, EMC (FCC)
  • Features: Wear leveling, Write amplification reduction, SMART monitoring, AES256 encryption (optional), E2E data protection

Buy the Swissbit SFPC005GM1EC1TOI5E51PSTD – Reliable NVMe for Industrial Applications

Purchase the Swissbit industrial NVMe SSD online today to ensure reliable, high-speed storage for demanding embedded and industrial system applications. Designed for durability from -40°C to 85°C, it supports NVMe 1.3, advanced error correction, AES encryption, and firmware updates, providing long-lasting performance and data security. The compact M.2 form factor, high endurance, and low power consumption make it ideal for embedded systems, ensuring seamless integration and reliable operation under tough conditions. Order now and benefit from Swissbit’s quality and innovation.

Get Swissbit SFPC005GM1EC1TOI5E51PSTD today—built for durability and high-speed data transfer in industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC005GM1EC1TOI5E51PSTD?

You can click on the BUY or RFQ button to purchase SFPC005GM1EC1TOI5E51PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC005GM1EC1TOI5E51PSTD?

You can download the SFPC005GM1EC1TOI5E51PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC005GM1EC1TOI5E51PSTD?

SWISSBIT
